Camshaft Oil Seal Installation - In Car

Camshaft Oil Seal Installation - In Car

Special Tools Required

- Camshaft oil seal driver 07GAF-SD40330
1. Remove the timing belt. Timing Belt Removal

2. Remove the camshaft pulley and back cover. Cylinder Head Removal

3. Remove the camshaft oil seal.

4. Dry the camshaft oil seal housing.

5. Apply a light coat of multipurpose grease to the lip of the camshaft oil seal.

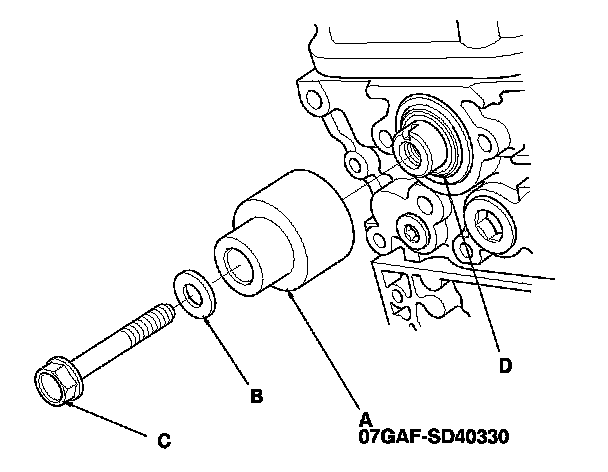

6. Using the camshaft oil seal driver (A), washer (B), and a 12 x 75 x 1.25 mm bolt (C), press in the camshaft oil seal (D) about 0.5-1.5 mm (0.02-0.06 in.) below the surface of the cylinder head.

7. Apply new engine oil to the threads of the camshaft pulley mounting bolt Install the back cover, then install the camshaft pulley. Camshaft, Rocker Arm Assembly, Camshaft Seal, and Pulley Installation

8. Install the timing belt. Timing Belt Installation
