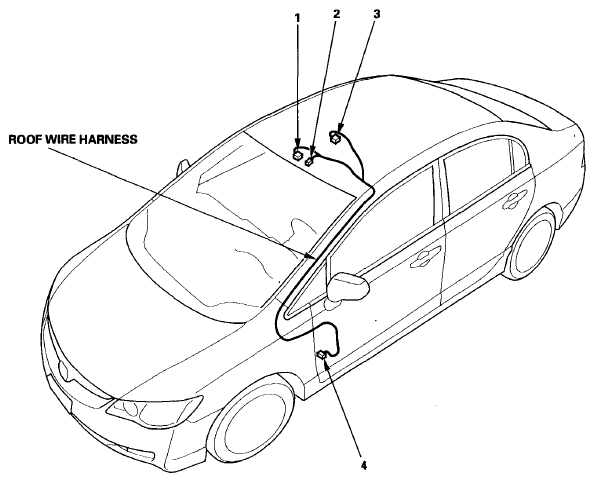

Roof Wire Harness (Without moonroof)
WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR AND TERMINAL CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Ambient light | 1 | 10 | Front of roof | ||
| Ceiling light | 3 | 3 | Rear of roof | ||
| Front map light | 2 | 3 | Front of roof | ||
| C801 | 4 | 6 | Under right side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) |
