Roof Wire Harness (With moonroof)
WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

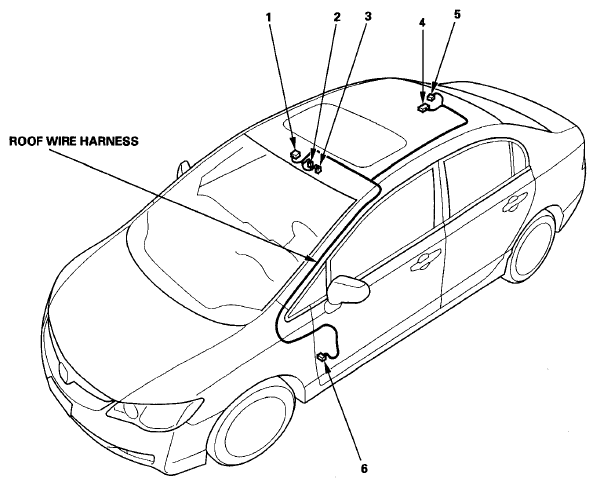

CONNECTOR AND TERMINAL CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Ceiling light | 5 | 3 | Rear of roof | ||
| Map lights | 3 | 3 | Front of roof | ||
| Microphone | 2 | 3 | Front of roof | ||
| Moonroof control unit/motor | 4 | 10 | Rear of roof | ||
| Moonroof switch/interior light switch/ ambient light | 1 | 10 | Front of roof | ||
| C801 | 6 | 20 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) |
