Driveshaft Removal

Raise the vehicle on the lift.
Remove the front wheels.
Lift up the locking tab (A) on the spindle nut (B), then remove the spindle nut.

Fig 1: Identifying Front Wheel Locking Tab
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Drain the transmission fluid. Reinstall the drain plug with a new washer:
- 5-speed manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- 6-speed manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- Automatic transmission (see ATF REPLACEMENT )
Remove the driveshaft outboard joint from the front wheel hub using a plastic hammer.

Fig 2: Tapping Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

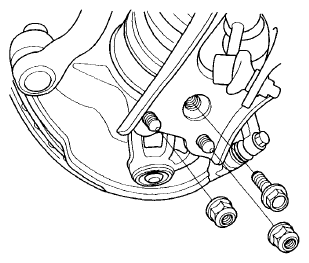

Remove the nuts and bolt, then separate the lower arm with using a prybar.

Fig 3: Identifying Lower Arm Nuts And Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the knuckle outward, and remove the driveshaft outboard joint from the front wheel hub.

Fig 4: Removing Driveshaft Outboard Joint From Front Wheel Hub
Courtesy of AMERICAN HONDA MOTOR CO., INC.

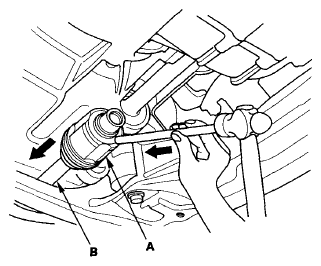

Right driveshaft: Drive the inboard joint (A) off of the intermediate shaft using a drift and hammer. Remove the driveshaft as an assembly.
NOTE: Do not pull on the driveshaft (B) or the inboard joint may come apart.

Fig 5: Removing Inboard Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Left driveshaft: Pry the inboard joint (A) from the transmission housing with a prybar. Remove the driveshaft as an assembly.
Do not pull on the driveshaft (B), or the inboard joint may come apart. Pull the driveshaft straight out to avoid damaging the oil seal.

Fig 6: Prying Inboard Joint From Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
