Driveshaft Installation

NOTE: Before starting installation, make sure the mating surfaces of the joint and the splined section are not dusty or dirty.

Apply about 5 g (0.18 oz) moly 60 paste (P/N 08734-0001) to the contact area of the outboard joint and the front wheel bearing.
NOTE: The paste helps to prevent noise and vibration.

Fig 1: Identifying Grease Applying Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new set ring onto the set ring groove of the driveshaft (left driveshaft).

Fig 2: Identifying Set Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply specified grease to the whole splined surface (A) of the right driveshaft. After applying grease, remove the grease from the splined grooves at intervals of 2-3 splines and from the set ring groove (B) so that air can bleed from the intermediate shaft.
Grease quantity

Except Type S:0.5-1.0 g (0.02-0.04 oz)

Type S: 2.0-3.0 g (0.08-0.12 oz)

Fig 3: Applying Specified Grease To Whole Splined Surface Of Right Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clean the areas where the driveshaft contacts the differential thoroughly with solvent or brake cleaner, and dry with compressed air.
NOTE: Do not wash the rubber parts with solvent.
Insert the inboard end (A) of the driveshaft into the differential (B) or intermediate shaft (C) until the set ring (D) locks in the groove (E).
NOTE: Insert the driveshaft horizontally to prevent damaging the differential oil seal.

Fig 4: Inserting Inboard Of Driveshaft Into Differential
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the outboard joint (A) into the front hub (B).

Fig 5: Installing Outboard Joint Into Front Hub
Courtesy of AMERICAN HONDA MOTOR CO., INC.

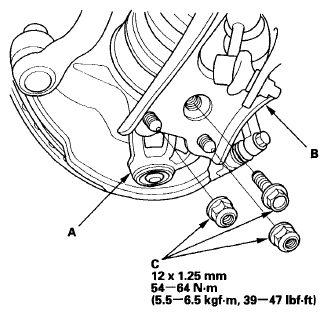

Install the knuckle (A) onto the lower arm (B). Then tighten the nuts and bolt (C) to the lower torque specification.

Fig 6: Knuckle And Lower Arm With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply small amount of engine oil to the seating surface of the new spindle nut (A).

Fig 7: Applying Small Amount Of Engine Oil To Seating Surface Of Spindle Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new spindle nut, then tighten the nut. After tightening, use a drift to stake the spindle nut shoulder (B) against the driveshaft.
Clean the mating surfaces of the brake disc and the front wheel, then install the front wheels.
Turn the front wheel by hand, and make sure there is no interference between the driveshaft and surrounding parts.
Refill the transmission with the recommended transmission fluid:
- 5-speed manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- 6-speed manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- Automatic transmission (see ATF REPLACEMENT )
Lower the vehicle on the lift.
Check the front wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
Test-drive the vehicle.
