Front Grille Cover Replacement

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to scratch the rear bumper and body.
  1. Remove the front fender trim from both sides (see FRONT FENDER TRIM REPLACEMENT  ).
  2. Remove the clips (A, B) by carefully pulling the rear of the front grille cover (C) up, then remove the cover by releasing the front edge of the cover from the front grille (D). Take care not to scratch the body.
    NOTE: To remove the clips, pry the inner pin up at the edge near the line (E) on its head.

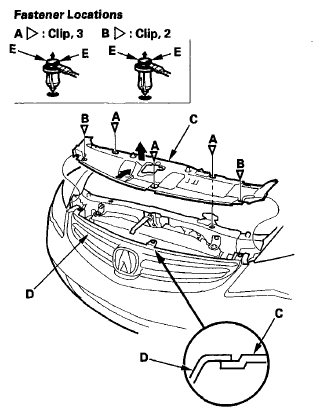

    Fig 1: Identifying Front Grille Cover And Front Grille
    G06268682Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the cover in the reverse order of removal, and note these items:
    • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
    • Push the clip portions into place securely.
