DTC 62-1 x ("x" can be 0 thru 9 or A thru F): Open in Front Passenger's Seat Belt Buckle Switch ('04-05 models)

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures (see PRECAUTIONS AND PROCEDURES  ) and General Troubleshooting Information (see DTC (DIAGNOSTIC TROUBLE CODES)  ).
  1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS  ).
  2. Turn the ignition switch ON (II), then buckle and unbuckle the front passenger's seat belt several times.
  3. Read the DTC (see DTC (DIAGNOSTIC TROUBLE CODES)  ).

    Is DTC 62-1x indicated?

    YES  -Go to step 4.

    NO  -Intermittent failure, system is OK at this time. Go to TROUBLESHOOTING INTERMITTENT FAILURES  . If another DTC is indicated, troubleshoot the DTC.

  4. Turn the ignition switch OFF.
  5. Disconnect the front passenger's seat belt buckle switch 3P connector (A) from the floor wire harness ('04 model) or front passenger's seat wire harness ('05 model).
    Fig 1: Identifying Front Passenger's Seat Belt Buckle Switch 3P Connector
    G05489686Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Buckle the front passenger's seat belt.

    Measure the resistance between the No. 1 and No. 3 terminals of the front passenger's seat belt buckle switch 3P connector. There should be 0-1 Ω.

    Measure the resistance between the No. 1 [No. 2] and No. 2 [No. 3] terminals of the same connector. There should be an open circuit or at least 1MΩ.

    :'05 model

    Fig 2: Measuring Resistance Between No. 1 And No. 3 Terminals Of Front Passenger's Seat Belt Buckle Switch 3P Connector (04 Model)
    G05489687Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 3: Measuring Resistance Between No. 1 And No. 3 Terminals Of Front Passenger's Seat Belt Buckle Switch 3P Connector (05 Model)
    G05489688Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Are the resistances as specified?

    YES  -Go to step 7.

    NO  -Replace the front passenger's seat belt buckle assembly (see SEAT BELT BUCKLE ), then clear the DTC.

  7. Unbuckle the front passenger's seat belt.

    Measure the resistance between the No. 1 [No. 2] and No. 2 [No. 3] terminals of the front passenger's seat belt buckle switch 3P connector. There should be 0-1 Ω.

    :'05 model

    Measure the resistance between the No. 1 and No. 3 terminals of the same connector. There should be an open circuit or at least 1MΩ.

    Fig 4: Measuring Resistance Between No. 1 And No. 3 Terminals Of Front Passenger's Seat Belt Buckle Switch 3P Connector (04 Model)
    G05489689Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 5: Measuring Resistance Between No. 1 And No. 3 Terminals Of Front Passenger's Seat Belt Buckle Switch 3P Connector (05 Model)
    G05489690Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Are the resistances as specified?

    YES  -Go to step 8.

    NO  -Replace the front passenger's seat belt buckle assembly (see SEAT BELT BUCKLE ), then clear the DTC.

  8. Measure the resistance between the No. 1 [No. 3] terminal of the floor wire harness 3P connector and body ground. There should be 0-1 Ω.

    [ ] : '05 model

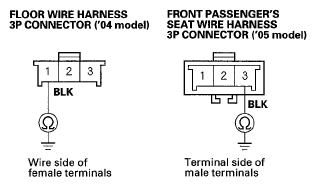

    Fig 6: Measuring Resistance Between No. 1 (No. 3) Terminal Of Floor Wire Harness 3P Connector And Body Ground
    G05489691Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is the resistance as specified?

    YES  -Go to step 9.

    NO  -Open in the floor wire harness, front passenger's seat wire harness ('05 model) or poor ground connection at G602 (see FLOOR WIRE HARNESS (RIGHT BRANCH) ). If G602 is OK, replace the faulty harness.

  9. Disconnect the negative cable from the battery, then wait for 3 minutes.
  10. Disconnect both seat belt tensioner 4P connectors from the floor wire harness (see step  6 ).
  11. Disconnect SRS unit connector B (28P) from the SRS unit (see step  7 ).
  12. Measure the resistance between the No. 18 terminal of SRS unit connector B (28P) and the No. 3 [No. 1] terminal of the floor wire harness 3P connector. There should be 0-1 Ω.

    [ ] : '05 model

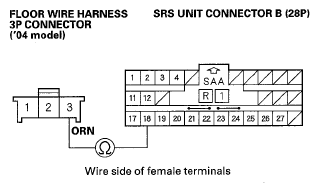

    Fig 7: Measuring Resistance Between SRS Unit Connector B (28P) And Floor Wire Harness 3P Connector (04 Model)
    G05489692Courtesy of AMERICAN HONDA MOTOR CO., INC.

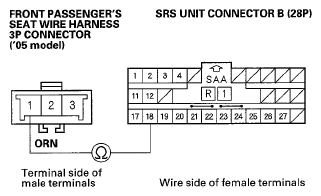

    Fig 8: Measuring Resistance Between SRS Unit Connector B (28P) And Floor Wire Harness 3P Connector (05 Model)
    G05489693Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is the resistance as specified?

    YES  -Go to step 13.

    NO  -Open in the floor wire harness or front passenger's seat wire harness ('05 model); replace the faulty harness.

  13. Measure the resistance between the No. 12 terminal of SRS unit connector B (28P) and the No. 2 terminal of the floor wire harness 3P connector. There should be 0-1 Ω.

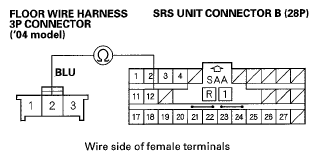

    Fig 9: Measuring Resistance Between SRS Unit Connector B (28P) And Floor Wire Harness 3P Connector (04 Model)
    G05489694Courtesy of AMERICAN HONDA MOTOR CO., INC.

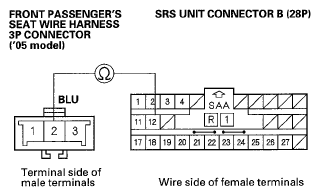

    Fig 10: Measuring Resistance Between SRS Unit Connector B (28P) And Floor Wire Harness 3P Connector (05 Model)
    G05489695Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is the resistance as specified?

    YES  -Replace the SRS unit (see SRS UNIT REPLACEMENT  ).

    NO  -Open in the floor wire harness or front passenger's seat wire harness ('05 model); replace the faulty harness.
