TPMS Subharness ('07-08 models)

TPMS SUBHARNESS REFERENCE

Connector or Terminal Ref Cavities Location Connects to
Right front initiator 2 3 Right fender well
C559 1 4 Behind right kick panel Dashboard wire harness (see DASHBOARD WIRE HARNESS (RIGHT BRANCH)  )

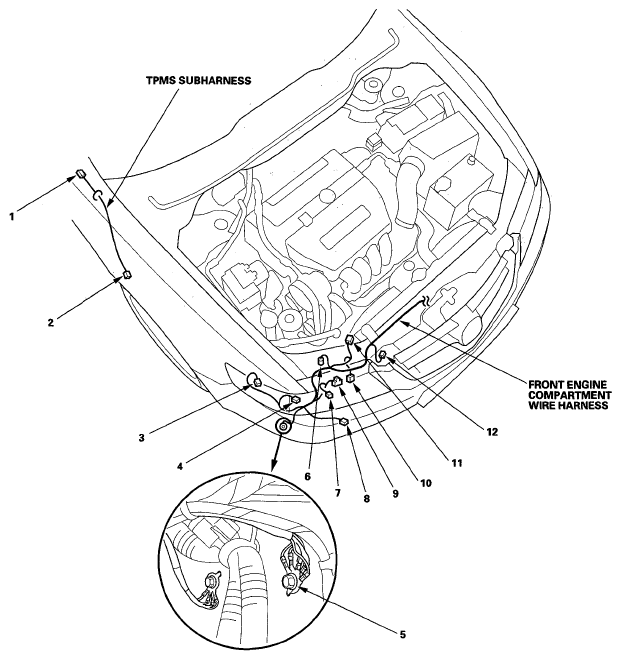

Fig 1: Identifying TPMS Subharness And Front Engine Comp Artment Wire Harness Location
G05492755Courtesy of AMERICAN HONDA MOTOR CO., INC.
