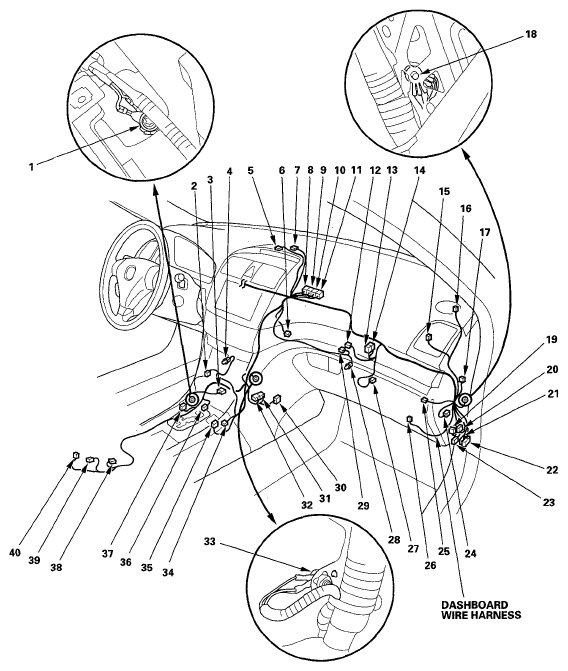

| Audio-HVAC subdisplay unit |
5 |
10 |
Middle of dash |
|
with navigation |
| Auxiliary jack assembly |
39 |
5 |
Rear of center console |
|
'06-08 models |
| Blower motor |
26 |
2 |
Under right side of dash |
|
|
| Clock |
5 |
10 |
Middle of dash |
|
without navigation |
| Console accessory power socket |
40 |
2 |
Under center console |
|
|
| Console box light |
4 |
2 |
Middle of dash |
|
|
| Driver's seat heater switch |
37 |
6 |
Under center console |
|
|
| ECM/PCM connector D |
32 |
17 |
Under middle of dash |
|
|
| ECM/PCM connector E |
31 |
31 |
Under middle of dash |
|
|
| Front accessory power socket |
2 |
2 |
Under console panel |
|
|
| Front passenger's airbag first and second inflators |
6 |
4 |
Behind glove box |
|
|
| Front passenger's seat heater switch |
35 |
6 |
Under center console |
|
|
| Glove box light |
28 |
2 |
Behind glove box |
|
|
| HandsFreeLink control unit |
25 |
22 |
Under right side of dash |
|
'06-08 models |
| Imoes unit |
15 |
5 |
Behind glove box |
|
'07-08 models |
| Park pin switch/transmission gear selection switch/A/T gear position console light |
36 |
8 |
Under console panel |
|
A/T |
| Parking brake switch |
38 |
1 |
Under center console |
|
|
| Power transistor |
27 |
4 |
Under right side of dash |
|
|
| Right tweeter |
16 |
2 |
Under middle of dash |
|
|
| Seat heater relay |
14 |
5 |
Under console panel |
|
|
| Shift lock solenoid |
34 |
2 |
Under right side of dash |
|
A/T |
| SRS unit connector A |
3 |
28 |
Under center console |
|
|
| Throttle actuator control module relay |
13 |
5 |
Behind glove box |
|
|
| Trunk lid opener main switch |
29 |
2 |
Behind glove box |
|
'04 model |
| Trunk lid opener main switch |
12 |
2 |
Behind glove box |
|
'05-08 models |
| C201 |
30 |
13 |
Under middle of dash |
Engine wire harness (see ENGINE WIRE HARNESS
) |
|
| C551 |
21 |
14 |
Behind right kick panel |
Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH)
) |
'04 model |
| C551 |
21 |
20 |
Behind right kick panel |
Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH)
) |
'05 model |
| C551 |
21 |
12 |
Behind right kick panel |
Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH)
) |
'06 model |
| C551 |
20 |
23 |
Behind right kick panel |
Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH)
) |
'07-08 models |
| C552 |
23 |
21 |
Behind right kick panel |
Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH)
) |
Navigation |
| C552 |
23 |
24 |
Behind right kick panel |
Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH)
) |
Navigation |
| C553 (Junction connector A) |
8 |
28 |
Behind glove box |
|
|
| C554 (Junction connector B) |
9 |
28 |
Behind glove box |
|
|
| C555 (Junction connector C) |
10 |
28 |
Behind glove box |
|
|
| C556 (Junction connector D) |
11 |
28 |
Behind glove box |
|
|
| C557 |
22 |
10 |
Behind right kick panel |
Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH)
) |
'05 model |
| C557 |
22 |
12 |
Behind right kick panel |
Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH)
) |
'06-08 models |
| C558 (Junction connector) |
7 |
12 |
Behind glove box |
|
|
| C559 |
24 |
4 |
Behind right kick panel |
TPMS subharness (see TPMS SUBHARNESS ('07-08 MODELS)
) |
'07-08 models |
| C651 |
17 |
6 |
Behind glove box |
Roof wire harness (see ROOF WIRE HARNESS
) |
Navigation |
| C731 |
20 |
13 |
Behind glove box |
Front passenger's door wire harness (see FRONT PASSENGER'S DOOR WIRE HARNESS
) |
|
| C732 |
19 |
12 |
Behind glove box |
Front passenger's door wire harness (see FRONT PASSENGER'S DOOR WIRE HARNESS
) |
|
| G503 |
18 |
|
Behind glove box |
Body ground, via dashboard wire harness |
|
| G505 |
1 |
|
Under center console |
Body ground, via dashboard wire harness |
|
| G506 |
33 |
|
Under middle of dash |
Body ground, via dashboard wire harness |
|
