Roof Wire Harness

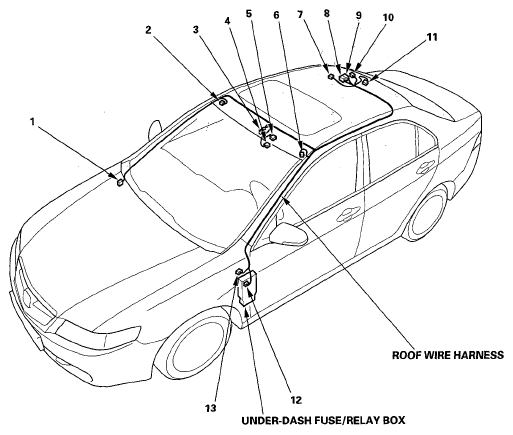

ROOF WIRE HARNESS SPECIFICATION
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Automatic dimming inside mirror | 4 | 7 | Behind rearview mirror | ||
| Ceiling light | 11 | 3 | Rear of roof | ||
| Driver's vanity mirror light | 6 | 2 | Driver's sunvisor mount | ||
| Ambient light | 3 | 10 | Front of roof | ||
| Front passenger's vanity mirror light | 2 | 2 | Front passenger's sunvisor mount | ||
| Individual map lights | 5 | 3 | Front of roof | ||
| Moonroof close relay | 8 | 5 | Rear of roof | ||
| Moonroof motor | 7 | 2 | Rear of roof | ||
| Moonroof open relay | 9 | 5 | Rear of roof | ||
| Moonroof limit switch | 10 | 4 | Rear of roof | ||
| Under-dash fuse/relay box connector W (see UNDER-DASH FUSE/RELAY BOX ) | 12 | 5 | Behind left kick panel | ||
| C601 | 13 | 10 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) | |
| C651 | 1 | 6 | Behind glove box | Dashboard wire harness (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) ) | Navigation |
