Front Passenger's Door Wire Harness

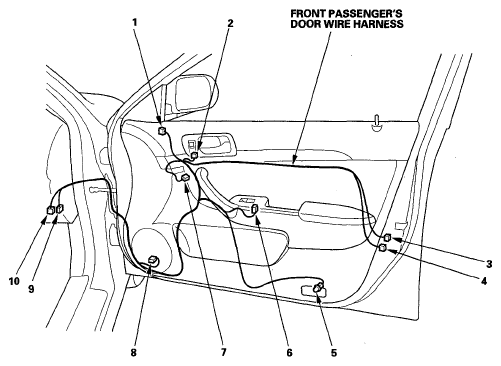

FRONT PASSENGER'S DOOR WIRE HARNESS SPECIFICATION
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Front passenger's door courtesy light | 5 | 2 | Front passenger's door | |
| Front passenger's door lock actuator | 4 | 2 | Front passenger's door | |
| Front passenger's door lock switch | 2 | 3 | Front passenger's door | |
| Front passenger's door lock knob switch | 3 | 3 | Front passenger's door | |
| Front passenger's door speaker | 8 | 2 | Front passenger's door | |
| Front passenger's power window motor | 7 | 6 | Front passenger's door | |
| Front passenger's power window switch | 6 | 6 | Front passenger's door | |
| Right power mirror/right side turn signal light | 1 | 13 | Front passenger's door | |
| C731 | 9 | 13 | Behind glove box | Dashboard wire harness (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) ) |
| C732 | 10 | 12 | Behind glove box | Dashboard wire harness (see DASHBOARD WIRE HARNESS (RIGHT BRANCH) ) |
