Gauge Assembly Replacement

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ), then remove the upper column cover (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Remove the screws from the gauge assembly (B).

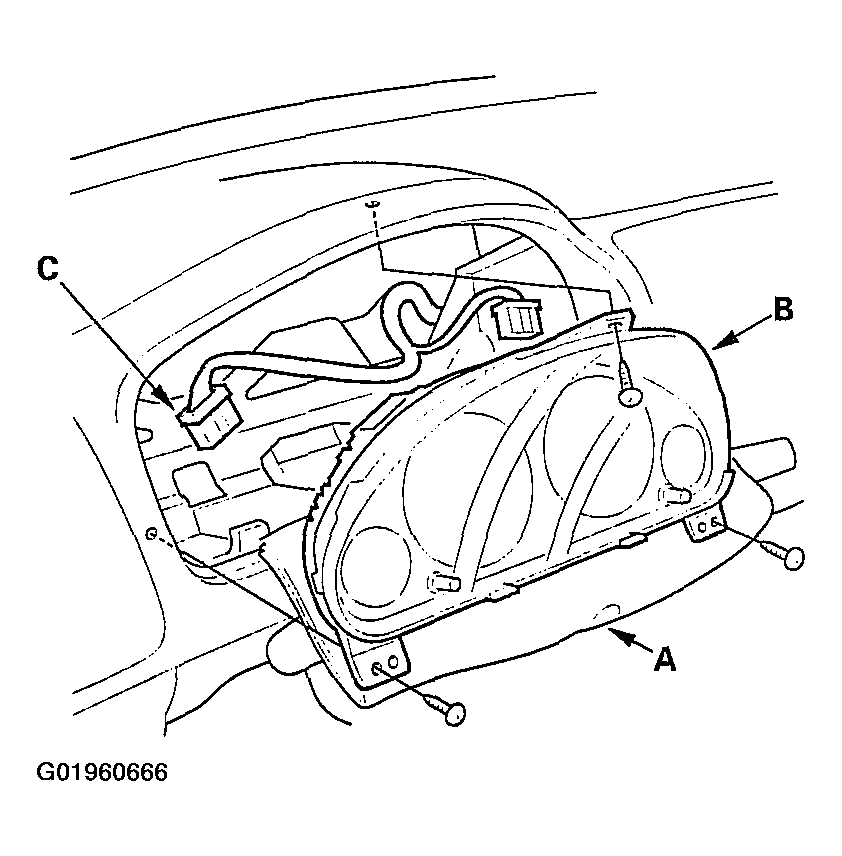

    Fig 1: Removing Screws From Gauge Assembly
    G01960666
  3. Disconnect the connectors (C), and remove the gauge assembly.
  4. Install the gauge assembly in the reverse order of removal.
