Resistance Test

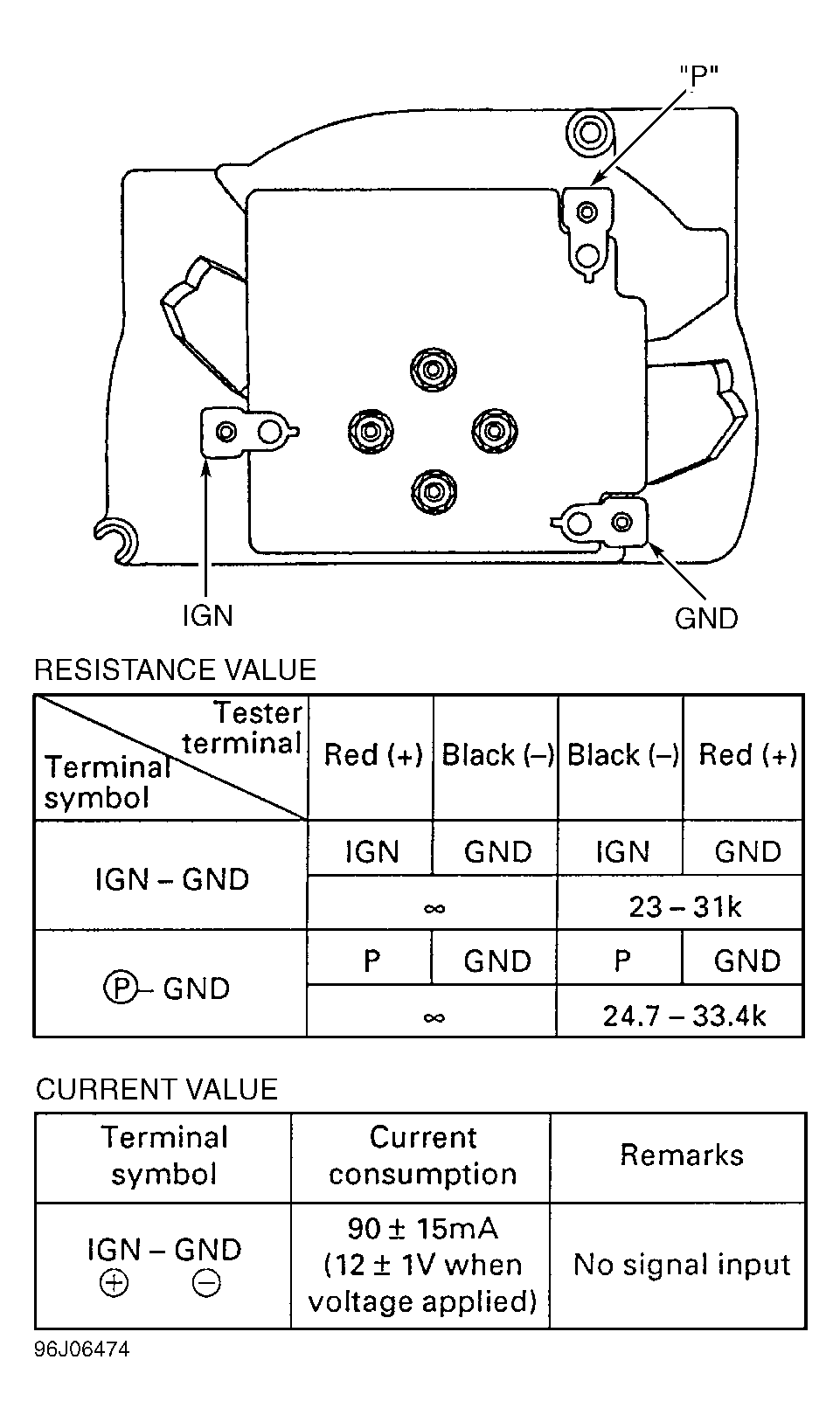

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Remove speedometer from instrument cluster. Using an ohmmeter set to the 1000-ohm scale, measure resistance of tachometer. See Fig 1 . Replace tachometer if resistance is not as specified.
TACHOMETER VARIATION SPECIFICATIONS
| Standard RPM Indication | Allowable RPM Range |
|---|---|
| 750 | 690-770 |
| 1000 | 900-1060 |
| 2000 | 1820-2090 |
| 3000 | 2820-3120 |
| 4000 | 3820-4180 |
| 5000 | 4820-5180 |
| 6000 | 5820-6180 |
| 7000 | 6820-7180 |
