Removal & Installation

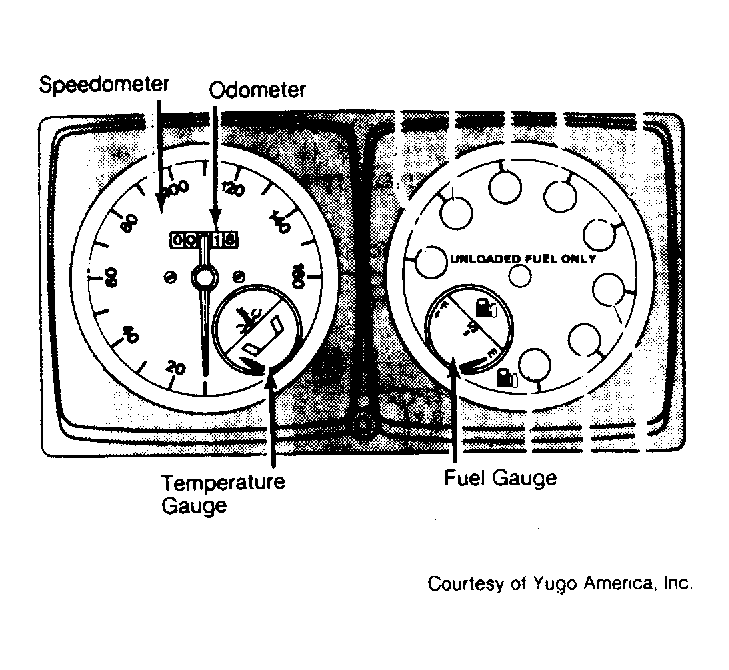

Disconnect negative battery cable. Remove instrument cluster cover screws and remove cluster cover. Separate electrical connector and speedometer cable. Remove cluster lens and speedometer head assembly. Remove all bulbs, coolant and fuel gauges. To install, reverse removal procedure.
