Removal & Installation

Remove rotor retaining bolt, locator pin and plate. Install Rotor Ring Halves (A 47211/775) and Puller Legs (A 47210/775). See Fig 1 . Turn end bolt of puller and remove rotor. To install, reverse removal procedure.

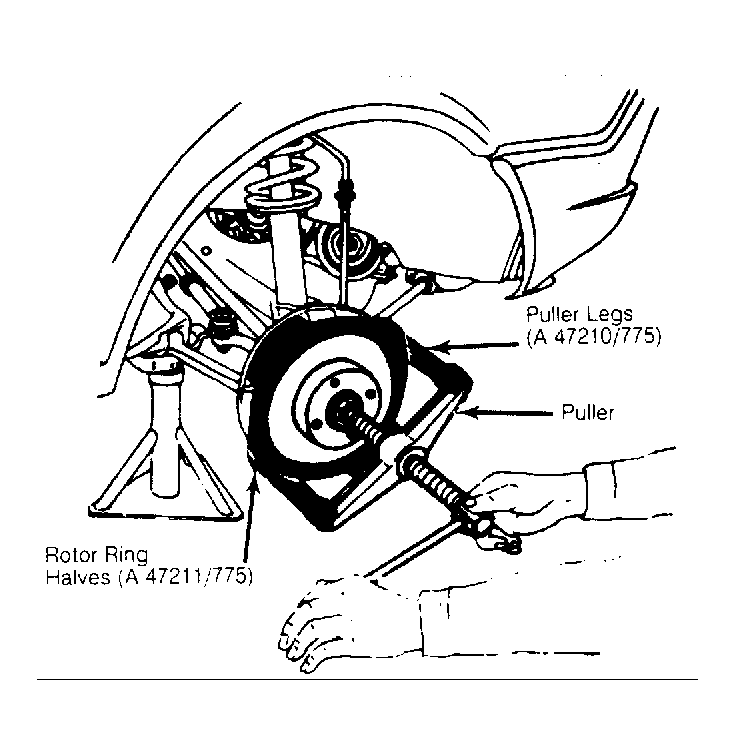

Fig 1: Removing Disc Brake Rotor

Courtesy of YUGO AMERICA, INC.
