Brake Booster

  1. The brake booster adjustment is made by turning the adjusting screw located on the control rod. With brake booster removed and in resting position the control rod end should protrude from the front of brake booster .032-.040" (.825-1.025 mm).
  2. If not, turn control rod adjustment screw until the specified amount of protrusion is present at the front of brake booster. See Fig 1 .
Fig 1: Rear Brake Compensator
G52225Courtesy of YUGO AMERICA, INC.

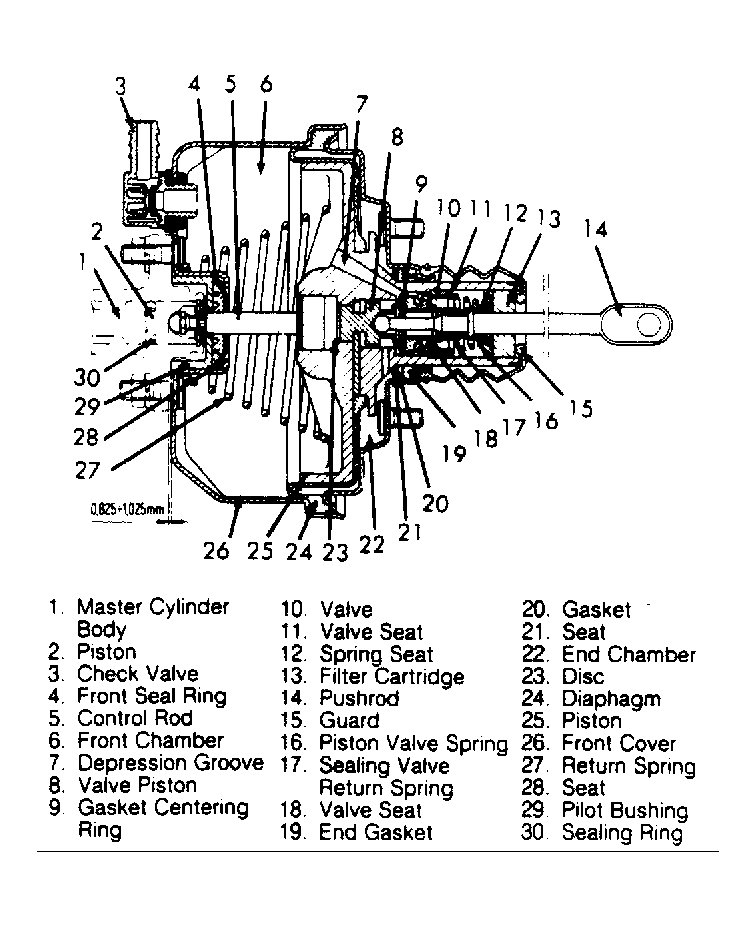

Fig 2: Internal View of Brake Booster
G52226Courtesy of YUGO AMERICA, INC,
