Plenum Cover [2018-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

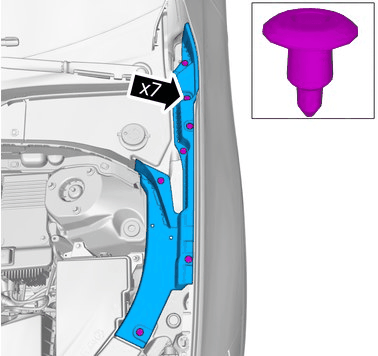

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

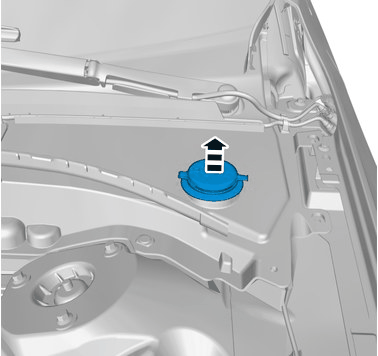

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

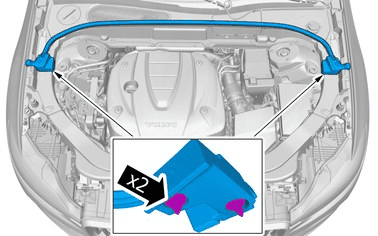

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the marked part.

On both sides.

Remove the wiper arm. Refer to: WIPER ARM

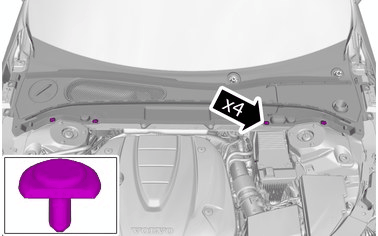

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

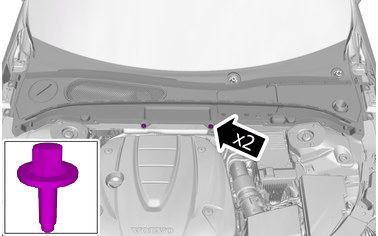

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10 Nm

Remove the screws.

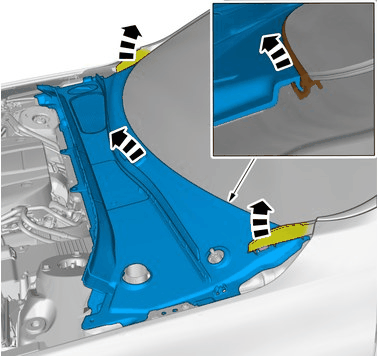

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Remove the marked part.
