Hood Latch [2018-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove casing bumper front. Refer to: COVER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

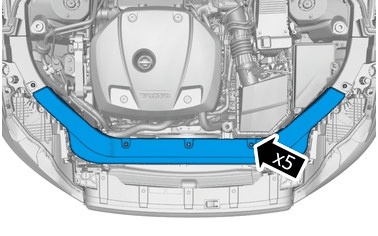

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Courtesy of VOLVO CARS CORPORATION

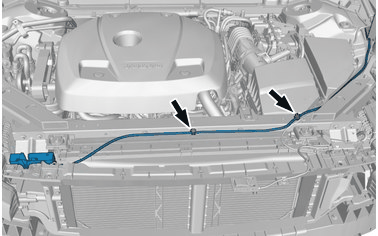

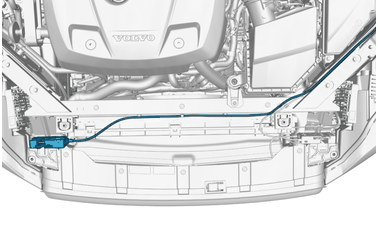

Release the cable.

Courtesy of VOLVO CARS CORPORATION

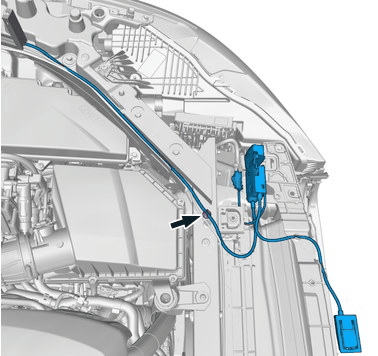

Release the cable.

APPLIES TO THE RIGHT-HAND SIDE

Courtesy of VOLVO CARS CORPORATION

NOTE:

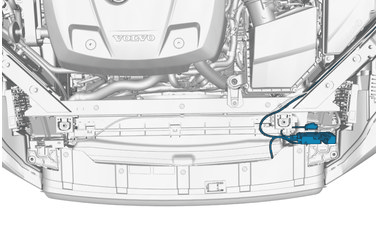

Orientation view

Courtesy of VOLVO CARS CORPORATION

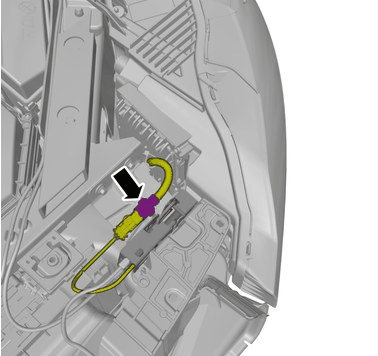

Disconnect the connector.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

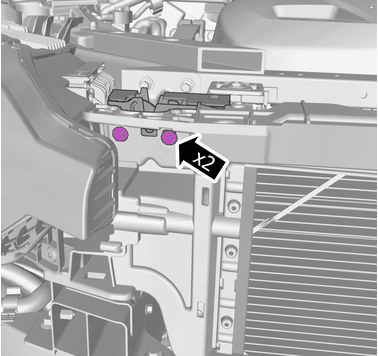

Torque: M6, 10 Nm

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

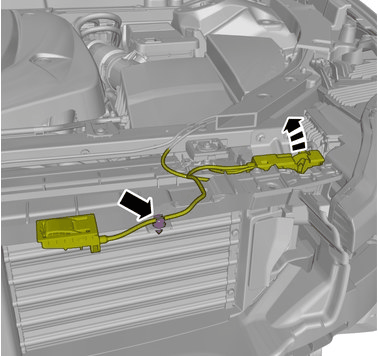

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Remove the marked part.

APPLIES TO THE LEFT-HAND SIDE:

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

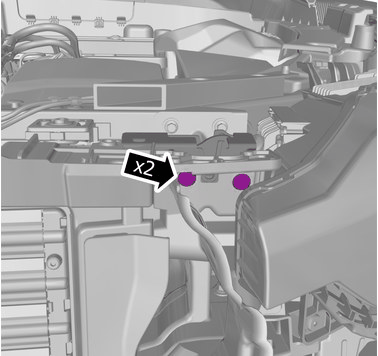

Torque: M6, 10 Nm

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Remove the marked part.
