Hood Latch Release Cable [2018-2022]: Removal

Remove control lock engine hood. Refer to: CONTROL LOCK ENGINE HOOD

Courtesy of VOLVO CARS CORPORATION

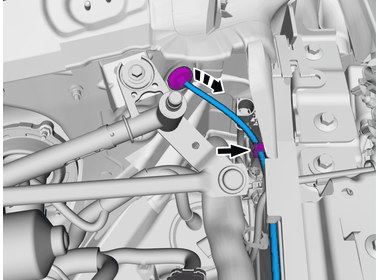

Attach a suitable draw cord to the hood latch cable.

Remove the plenum cover. Refer to: PLENUM COVER

Courtesy of VOLVO CARS CORPORATION

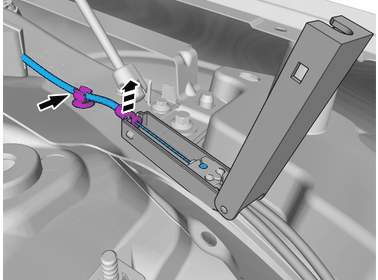

Release the locks.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

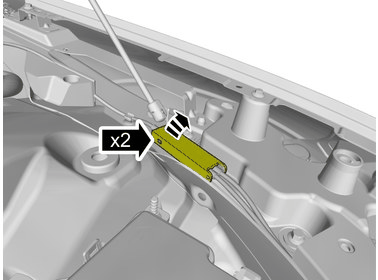

Loosen the marked details from the clip/clips.

Release the cable.

Courtesy of VOLVO CARS CORPORATION

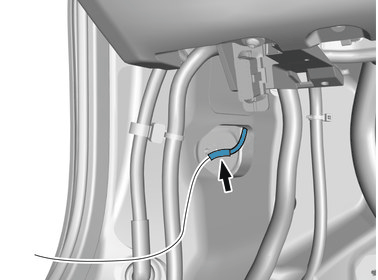

Loosen the marked details from the clip/clips.

Pull the component in direction of the arrow.
