Front Fender [2018-2022]: Removal

Remove the following items:

• Sill panel. Refer to: SILL PANEL
• Headlamps. Refer to: HEADLAMPS
• Charge Connector Door. Refer to: CHARGE CONNECTOR DOOR

Remove cover bumper front. Refer to: COVER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

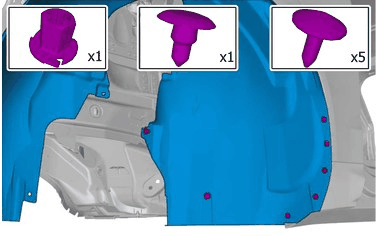

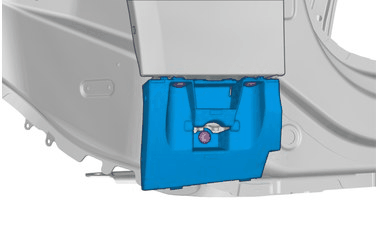

Remove the screws.

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

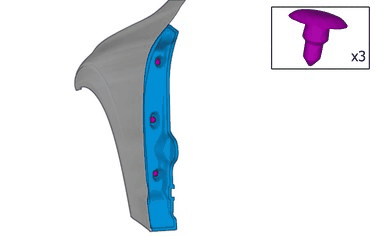

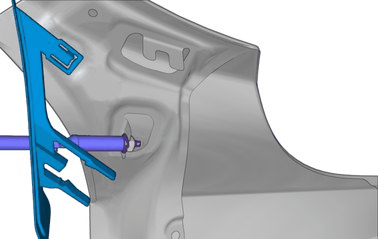

Remove the clips.

Remove the marked part.

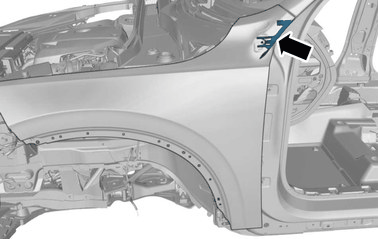

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

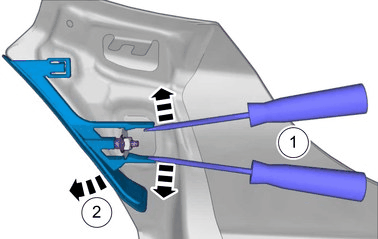

Release the catches.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

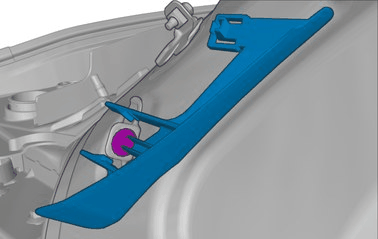

Loosen the screws.

Courtesy of VOLVO CARS CORPORATION

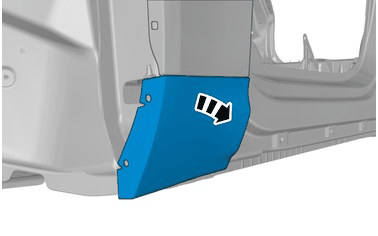

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

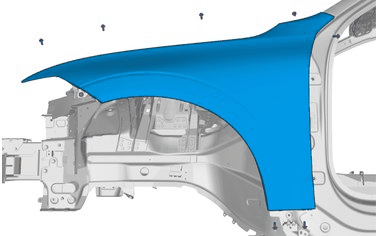

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

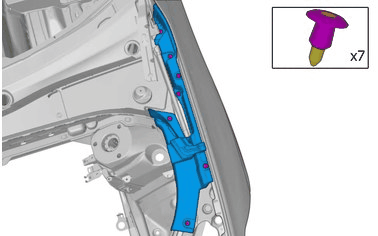

Remove the clips.

Remove the marked part.
