Front Fender [2018-2022]: Installation

Courtesy of VOLVO CARS CORPORATION

NOTE:

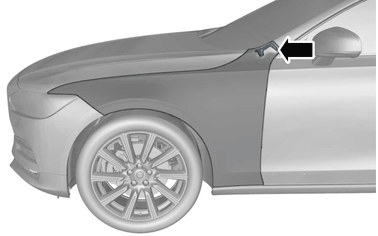

Orientation view

Courtesy of VOLVO CARS CORPORATION

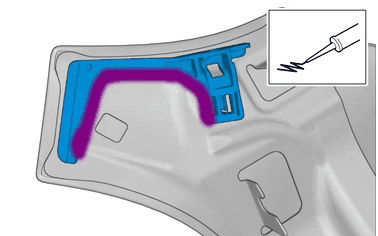

Use: Sealing compound, 1161767

Courtesy of VOLVO CARS CORPORATION

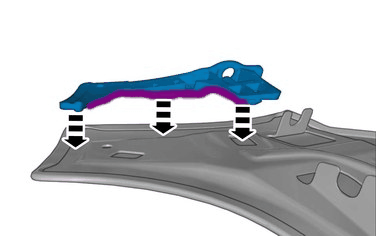

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

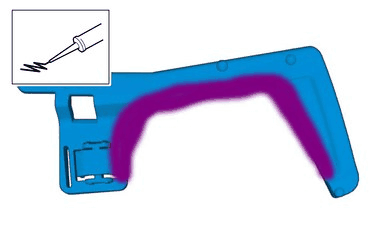

Use: Sealing compound, 1161767

See information about paint. Refer to: PAINT

See information about corrosion protection. Refer to: RUSTPROOFING

To install, reverse the removal procedure.
