Front End [2018-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the headlamp. Refer to: HEADLAMPS

Courtesy of VOLVO CARS CORPORATION

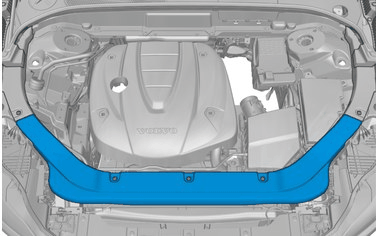

Remove the clips.

Remove the marked part.

Remove hood latch. Refer to: HOOD LATCH

Courtesy of VOLVO CARS CORPORATION

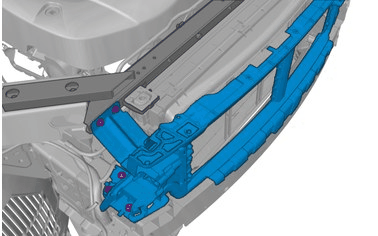

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

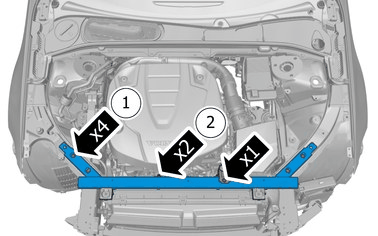

Remove the screws.
