Control Lock Engine Hood [2018-2022]: Removal

Remove sill molding front. Refer to: FRONT SILL MOULDING

Courtesy of VOLVO CARS CORPORATION

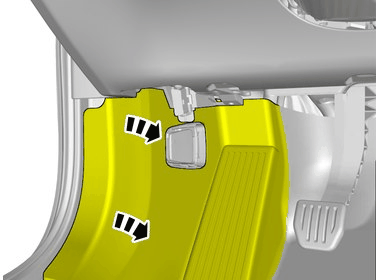

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

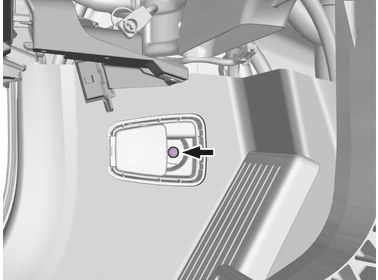

Remove the screw.

Torque:  M5, 5 Nm

Courtesy of VOLVO CARS CORPORATION

Fold the carpet aside.

Courtesy of VOLVO CARS CORPORATION

Loosen the component indicated. Do not remove it.

Courtesy of VOLVO CARS CORPORATION

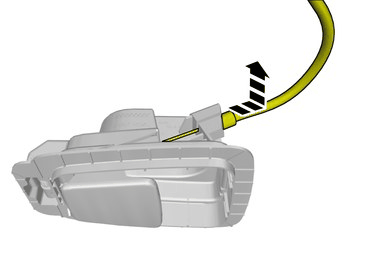

Release the cable.

Courtesy of VOLVO CARS CORPORATION

Release the cable.

Remove the marked part.
