Removal & Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Remove casing bumper front. Refer to: COVER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

Torque: Crossmember to collision member, 60 Nm

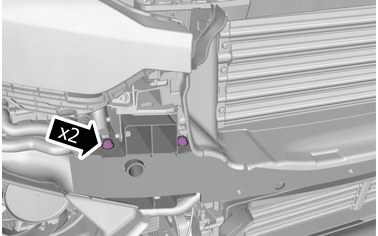

Remove the screws.

Repeat on the other side.

Courtesy of VOLVO CARS CORPORATION

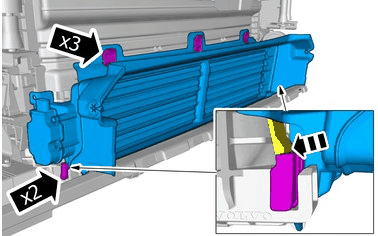

Release the catches.

Courtesy of VOLVO CARS CORPORATION

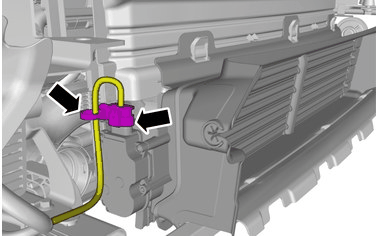

Remove the cable harness clips.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

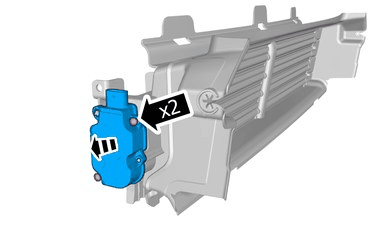

Release the catches.

Remove the marked part.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

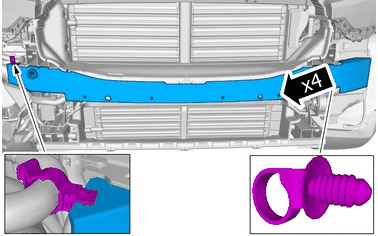

Remove the screws.

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.
