Active Grille Shutter [2018-2022]: Removal

Courtesy of VOLVO CARS CORPORATION

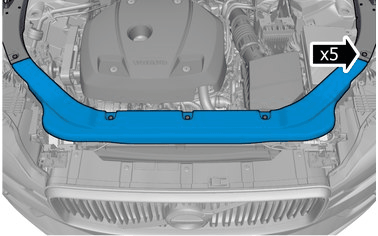

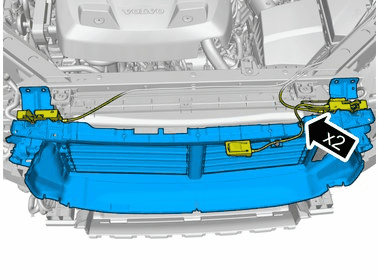

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Remove the marked part.

Remove casing bumper front. Refer to: COVER BUMPER FRONT

Remove the headlamp. Refer to: HEADLAMPS

Courtesy of VOLVO CARS CORPORATION

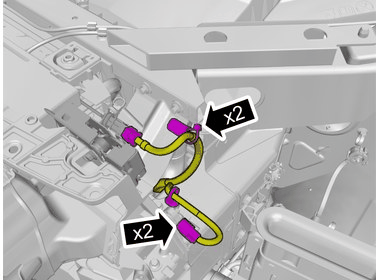

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10 Nm

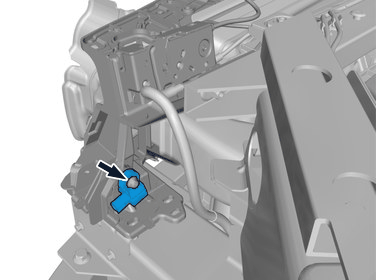

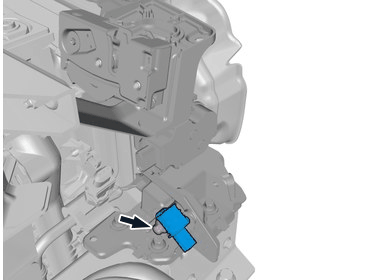

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10 Nm

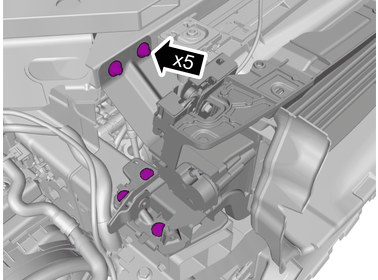

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

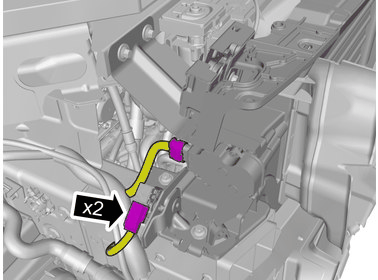

Disconnect the connectors.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10 Nm

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10 Nm

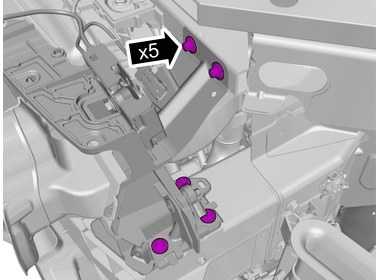

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10 Nm

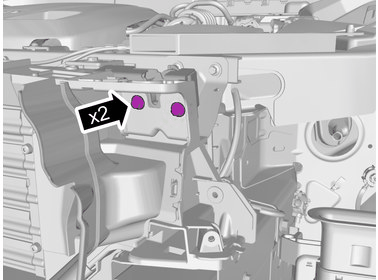

Remove the screws.

Repeat on the other side.

Courtesy of VOLVO CARS CORPORATION

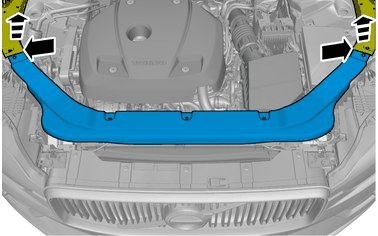

Fold marked part aside.

Remove the marked part.
