Collision Protection Unit From Behind Front Seat Check [2017-2022]: Check

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

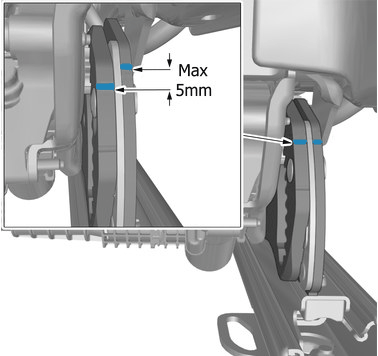

On both sides.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Courtesy of VOLVO CARS CORPORATION

NOTE:

If the specified value is exceeded, a new component must be installed.

If the measured value deviates from the value or interval specified in the graphic, follow the instruction below.

Perform collision protection unit from behind front seat. Refer to: [COLLISION PROTECTION UNIT FROM BEHIND FRONT SEAT]
