Removal And Installation

REMOVAL

Courtesy of VOLVO CARS CORPORATION

Open the tailgate.

Courtesy of VOLVO CARS CORPORATION

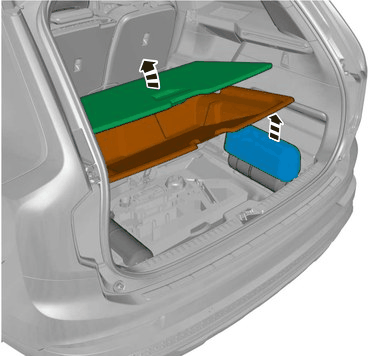

Remove the marked parts.

Courtesy of VOLVO CARS CORPORATION

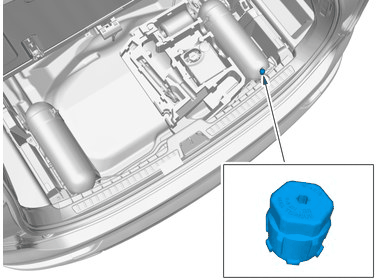

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

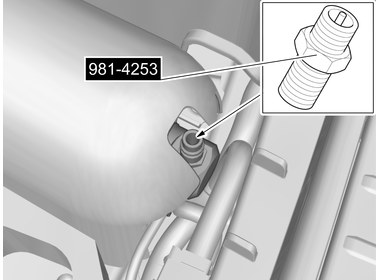

FILLING

Courtesy of VOLVO CARS CORPORATION

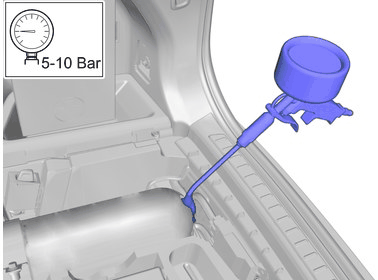

Fill to the specified pressure.

The specified pressure refers to normal working pressure.

Remove the Special Tool.

RESTORING

Reinstall the removed parts in reverse order.
