Engine Vacuum Pump [2020-2022, B4204T28 | 2020-2022, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove Inverter Generator Module (IGM). Refer to: INVERTER GENERATOR MODULE

Remove the fuel pump. Refer to: FUEL PUMP

Courtesy of VOLVO CARS CORPORATION

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

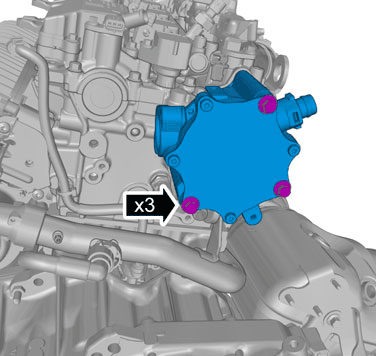

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Remove the screws.

Torque: M6, 10 Nm

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Observe caution when carrying out this step.

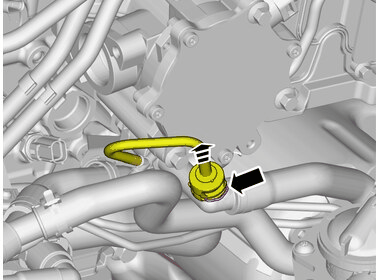

Release the lock.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

CAUTION:

This component is sensitive to "mechanical stresses". If the component has been dropped onto the floor, for example, it must not be installed in a vehicle.

Remove the screws.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

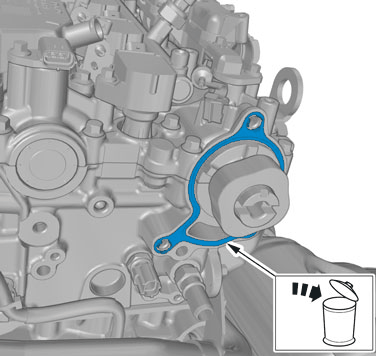

Courtesy of VOLVO CARS CORPORATION

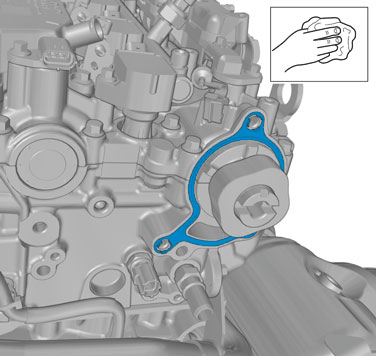

CAUTION:

Use lint free cloth.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Isopropanol, 1161721
