Removal & Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

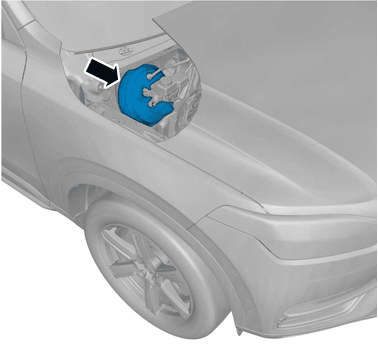

Orientation view

Battery, disconnection. Refer to:BATTERY DISCONNECTING AND CONNECTING

Remove bushing push rod. Refer to: BUSHING PUSH ROD

Remove the wiper mechanism, windscreen. Refer to: WIPER MECHANISM, WINDSHIELD

Courtesy of VOLVO CARS CORPORATION

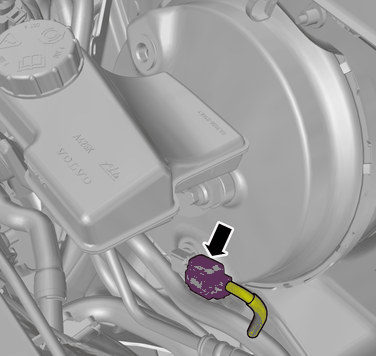

Undo the hose from the connection.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

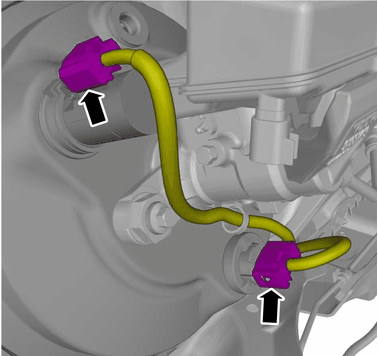

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

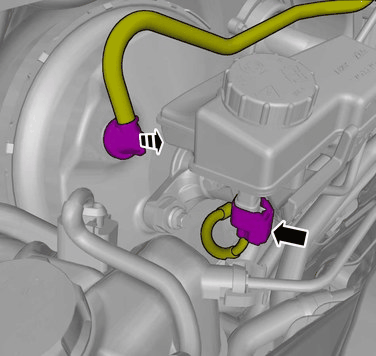

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

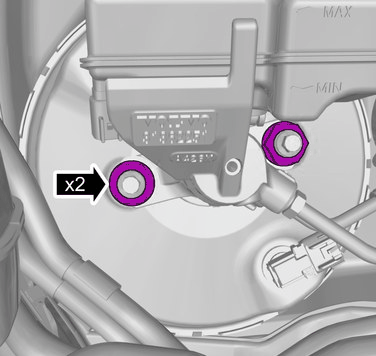

CAUTION:

Make sure that new nuts are installed.

Remove the nuts.

Torque: Master cylinder, to Brake booster, 27 Nm

Courtesy of VOLVO CARS CORPORATION

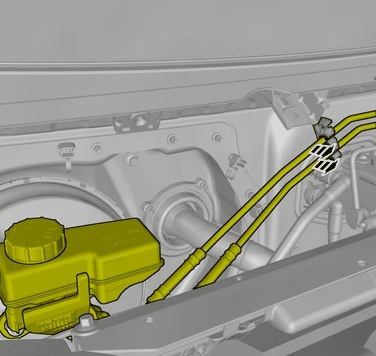

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are not forcibly bent.

Courtesy of VOLVO CARS CORPORATION

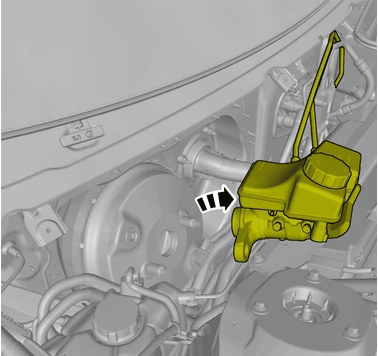

Remove the screws.

Remove the marked part.

HINT: It may be necessary to twist or turn the component.

Torque: M8, 24 Nm

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

To install, reverse the removal procedure.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

NOTE:

Make sure that the seal is correctly located.

Use: Thread locker normal, 1161053

Perform Battery, connecting. Refer to: BATTERY DISCONNECTING AND CONNECTING

Calibration according to: Diagnostics / Components / Control modules/ Central Electronic Module (CEM) / Diagnostic sequences / Calibration of brake pedal sensor and brake pedal angle sensor

Calibration according to: Diagnostics / Components / Control modules / Vehicle Dynamics Domain Master (VDDM) / Calibration of regenerative braking system
