Master Cylinder, Brake [2018-2022, B4204T18 | 2019-2022, B4204T47]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Follow instructions about safety information brake system. Refer to: SAFETY INFORMATION BRAKE SYSTEM
Remove reservoir brake fluid. Refer to: RESERVOIR, BRAKE FLUID

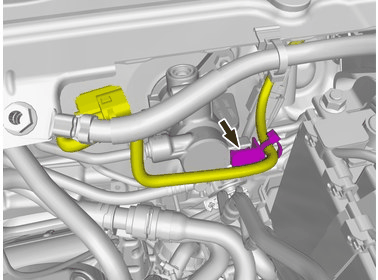

Remove the cable harness clips.
Fold marked part aside.
WARNING:
Be prepared to collect escaping fluid.

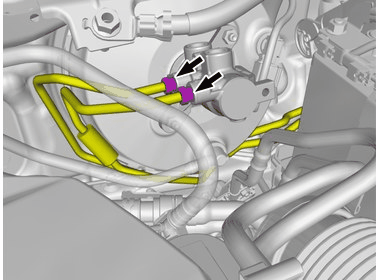

Loosen the marked detail/details.
Torque: Ø8 mm diameter brake line, 16Nm
CAUTION:
Make sure that new nuts are installed.

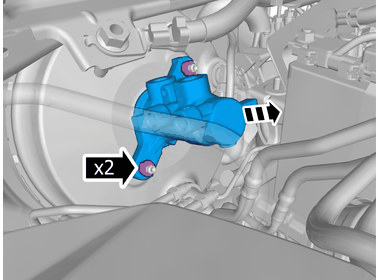

Remove the nuts.
Remove the marked part.
Torque: Master cylinder, to Brake booster, 25Nm
