Front Brake Flexible Hose [2018-2022]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
See information about safety information brake system. Refer to: SAFETY INFORMATION BRAKE SYSTEM
Remove the wheel. Refer to: WHEELS
Special Tool: 999 7394 Pedal lock

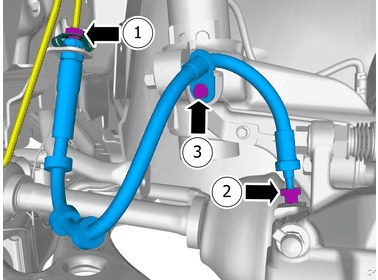

Detach the following items:
- Torque: Ø6 mm diameter brake line, 14Nm
- Torque: Brake hose to front brake caliper, 17Nm
- Torque: M5, 5Nm
