Bushing Push Rod [2021-2022]: Removal
 Courtesy of VOLVO CARS CORPORATION
|
CAUTION:
The clip is to be removed in pieces.
CAUTION:
When removed, the push rod is not be loaded with traction force over 25 N.
NOTE:
Make sure that a new component is installed.

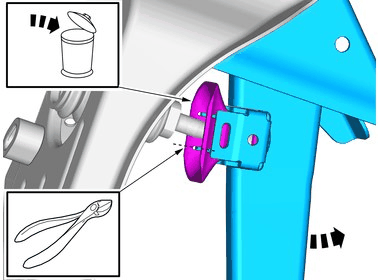

Cut following the dotted lines.
Remove the clip.
