Cross Member, Dash Board [2018-2022]: Installation
CAUTION:
Make sure that the wiring harness does not catch.

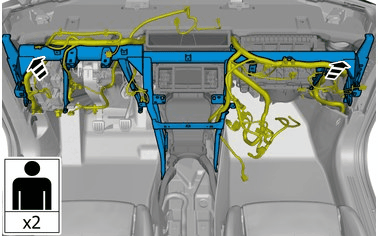

NOTE:
This step requires the aid of another technician.
Install the marked component.
CAUTION:
Make sure that the component is positioned correctly.

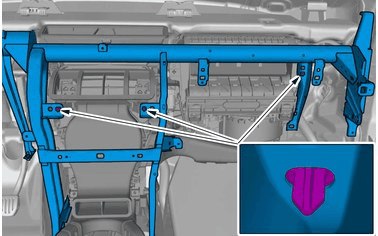

CAUTION:
Make sure that the component is correctly located on the locating dowels.

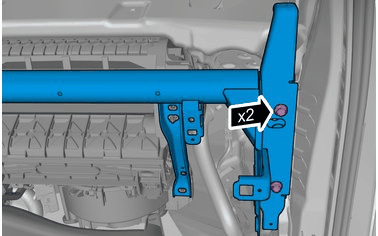

Install the screws.
Torque: M8, 24Nm

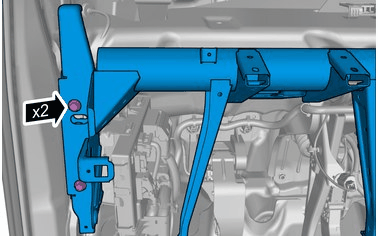

Install the screws.
Torque: M8, 24Nm

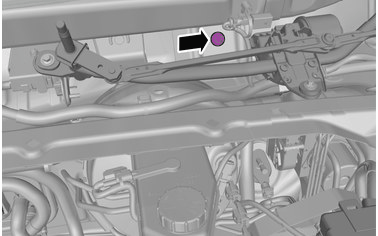

Install the screw.
Torque: M8, 24Nm
To install, reverse the removal procedure.
