Air Bag, Front Seat [2018-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions about safety information pyrotechnical system. Refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS

See information regarding the handling of non-deployed pyrotechnical parts. Refer to: HANDLING NON-DEPLOYED PYROTECHNICAL PART

Perform battery disconnecting and connecting. Refer to: BATTERY DISCONNECTING AND CONNECTING

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

Remove back rest, rear panel. Refer to: BACK REST REAR PANEL

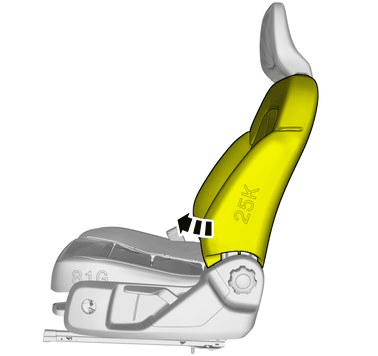

Courtesy of VOLVO CARS CORPORATION

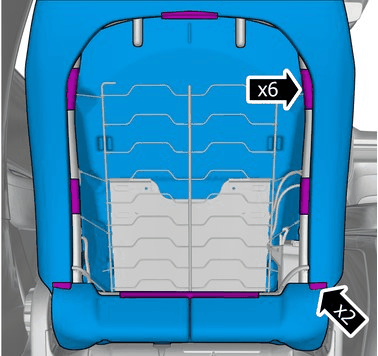

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Special Tool: 115 8962 CRIMP PLIERS

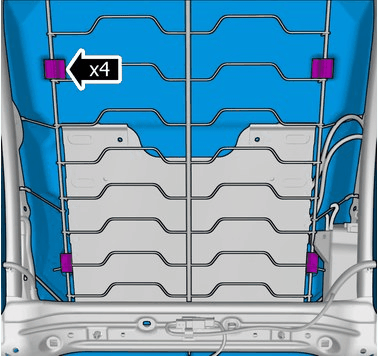

Remove the fasteners.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Dismantle the connector ignition cable. Refer to: IGNITER WIRE CONNECTOR

Courtesy of VOLVO CARS CORPORATION

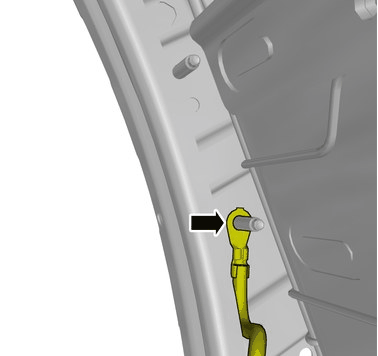

Disconnect the connector.

ALTERNATIVE 1

Courtesy of VOLVO CARS CORPORATION

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

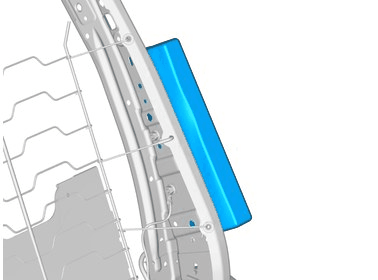

Loosen the fastener.

ALTERNATIVE 3

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The clip should always be replaced during removal.

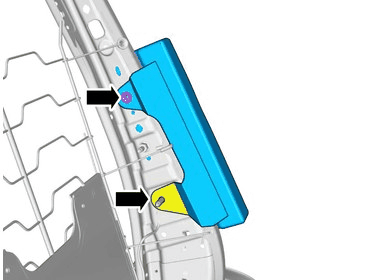

Remove the clip.

Fold marked part aside.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Torque: Air bag to seat (SIPS), 7Nm

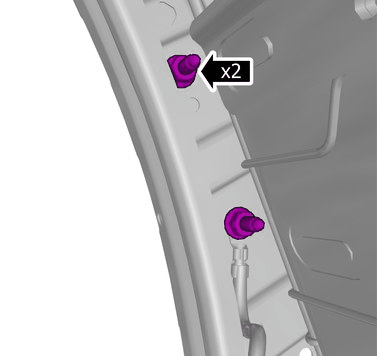

Remove the nuts.

Courtesy of VOLVO CARS CORPORATION

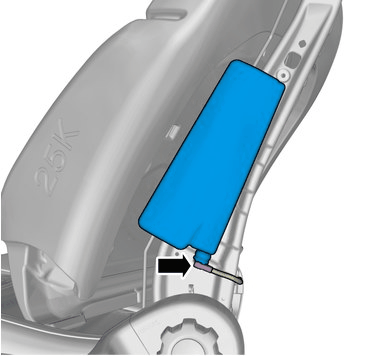

Fold marked part aside.

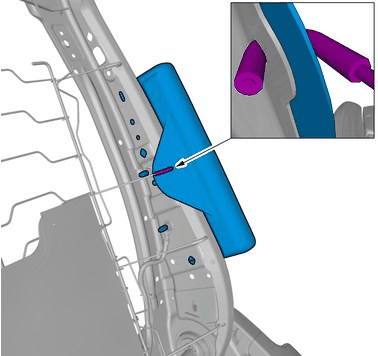

Courtesy of VOLVO CARS CORPORATION

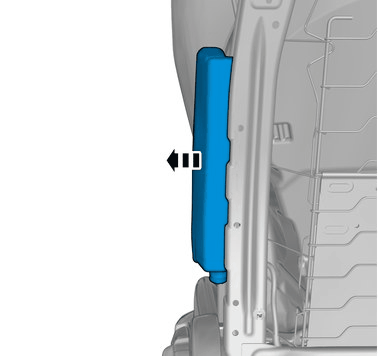

Remove the marked part.
