Emergency Opening Of Hood [2021-2022, E400V6]: Removal

Courtesy of VOLVO CARS CORPORATION

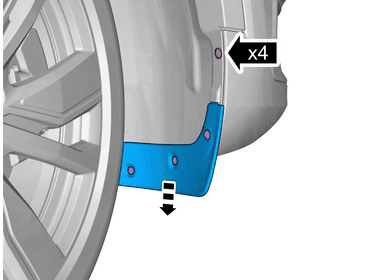

On both sides.

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

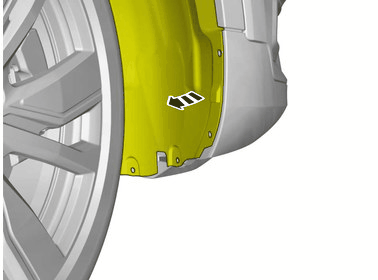

Fold the wing liner aside.

Courtesy of VOLVO CARS CORPORATION

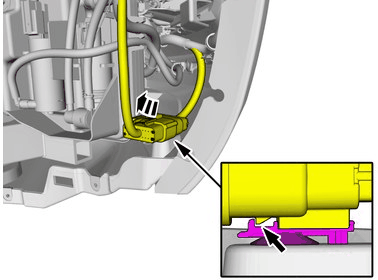

Release the lock.

Fold the cable harness aside.

Courtesy of VOLVO CARS CORPORATION

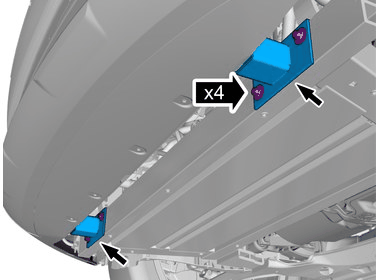

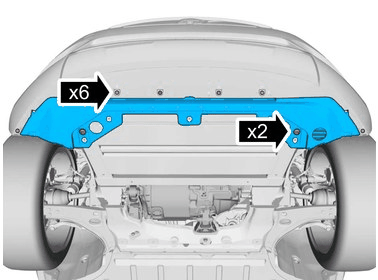

Remove the screws.

Remove the clip.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

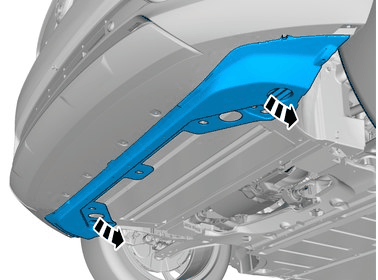

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

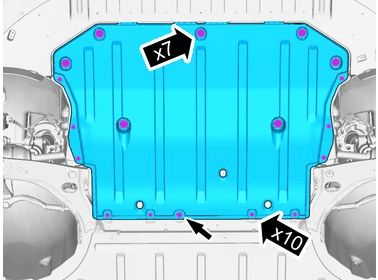

Remove the screws.

Torque:  M8, 24Nm

Remove the marked parts.

Courtesy of VOLVO CARS CORPORATION

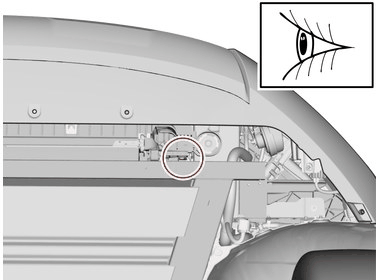

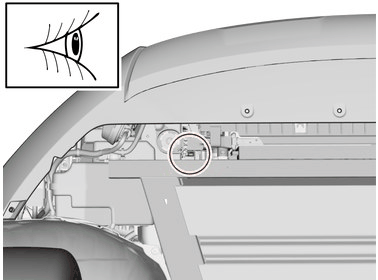

APPLIES TO THE LEFT-HAND SIDE:

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

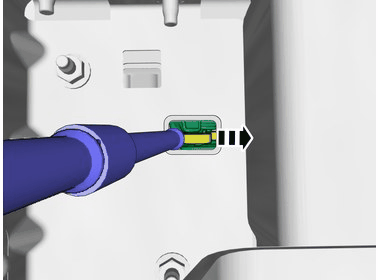

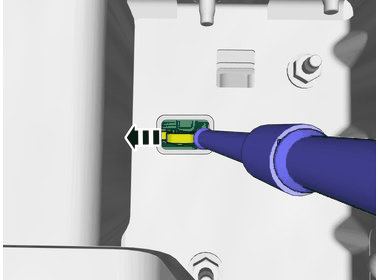

Release the lock.

APPLIES TO THE RIGHT-HAND SIDE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Release the lock.
