Reservoir, Brake Fluid [2021-2022, E400V6]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove brake booster. Refer to: BRAKE BOOSTER

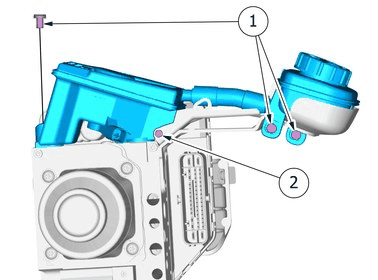

GLL1056625Courtesy of VOLVO CARS CORPORATION

Remove the screws.

  1. Torque:  Brake fluid reservoir, to hydraulic unit, 3.6Nm
  2. Torque:  Protective plate, to brake fluid reservoir, 2.5Nm

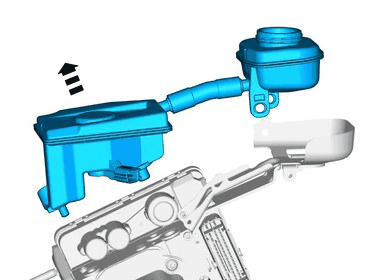

GLL1055519Courtesy of VOLVO CARS CORPORATION
NOTE:

Use suitable paper to absorb any escaping fluid.

Remove the marked part.
