Brake Pedal [2018-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove airbag driver's side knee. Refer to: DRIVER'S KNEE AIRBAG

Remove the brake light switch. Refer to: STOPLAMP SWITCH

Loosen bushing push rod. Refer to: BUSHING PUSH ROD

Courtesy of VOLVO CARS CORPORATION

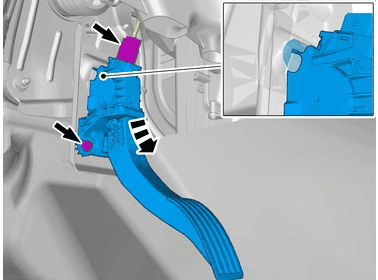

Remove the screw.

Disconnect the connector.

Remove the marked part.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

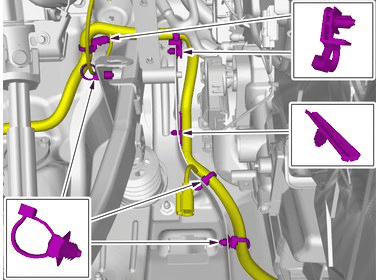

Remove the cable harness clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

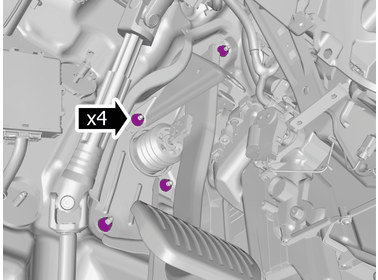

Remove the nuts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

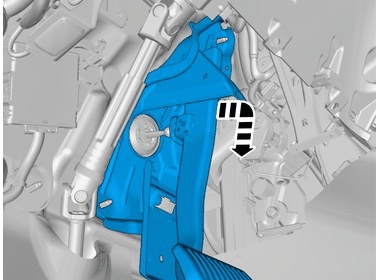

Remove the marked part.
