Brake Fluid [2021-2022, E400V6]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information brake system. Refer to: SAFETY INFORMATION BRAKE SYSTEM

Courtesy of VOLVO CARS CORPORATION

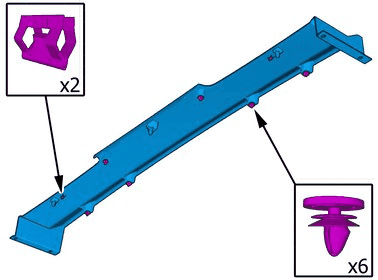

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

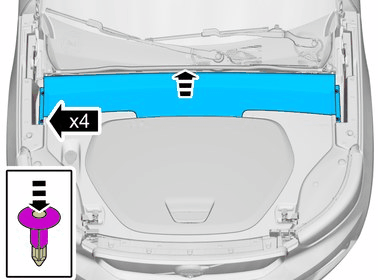

Loosen the fasteners.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

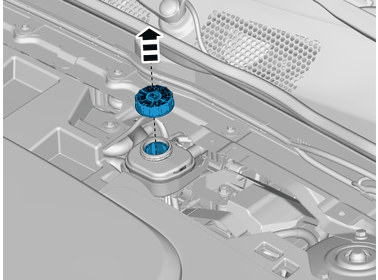

Remove the marked detail/details.

Drain the reservoir.

Use: Liquid extractor

Courtesy of VOLVO CARS CORPORATION

NOTE:

Always follow the manufacturer's instructions when handling the equipment.

Use: Air bleeding equipment

Use: Brake fluid, 9437430

Torque: Nipple bleeding brake system, 10Nm
