Inflatable Curtain [2018-2022]: Installation

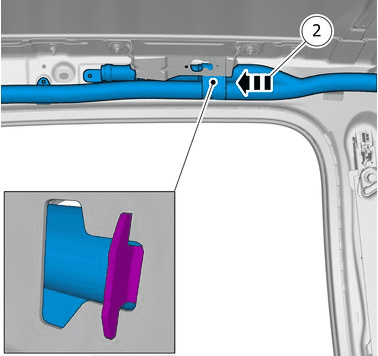

Install the marked component.

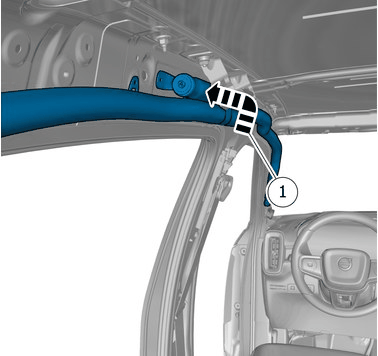

Install the marked component.
NOTE:

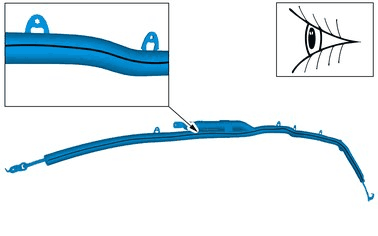

Make sure at the installation that the component has not become twisted. The colored line shall be visible along the entire inflatable curtain.
NOTE:
Make sure to follow the sequence indicated.
Torque: Inflatable curtain to the body, 7Nm

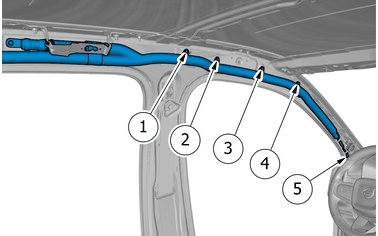

Install the screws.
NOTE:
Make sure to follow the sequence indicated.
Torque: Inflatable curtain to the body, 7Nm

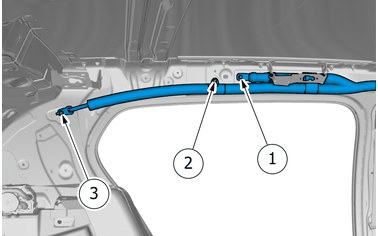

Install the screws.
NOTE:
Make sure at the installation that the component has not become twisted. The colored line shall be visible along the entire inflatable curtain.
To install, reverse the removal procedure.
Check for correct operation.
Perform supplemental restraint system (SRS), post check. Refer to: SUPPLEMENTARY RESTRAINT SYSTEM
