Glove Compartment Lid [2018-2022]: Removal

Remove glove compartment. Refer to: GLOVE COMPARTMENT

Courtesy of VOLVO CARS CORPORATION

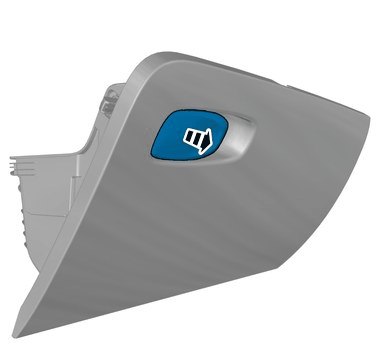

Loosen the marked detail.

Courtesy of VOLVO CARS CORPORATION

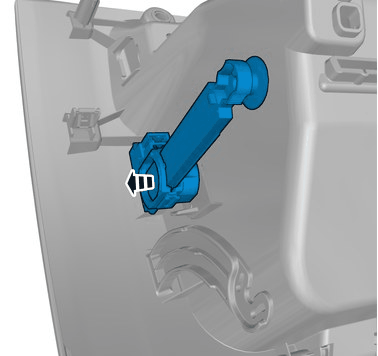

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

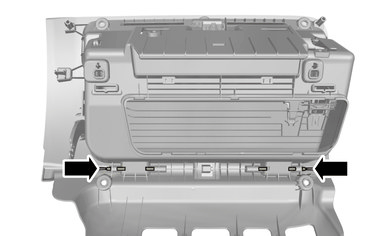

Release the locks.

Courtesy of VOLVO CARS CORPORATION

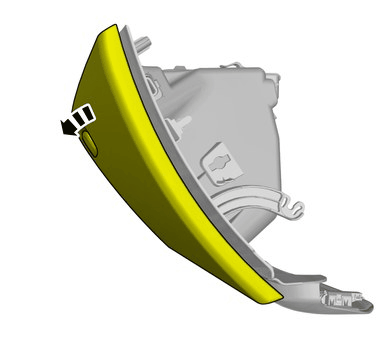

Remove the marked part.

On both sides.

Courtesy of VOLVO CARS CORPORATION

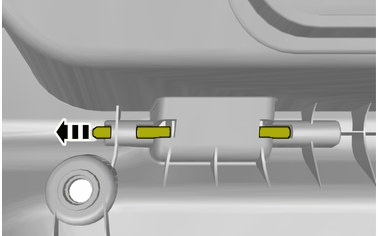

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

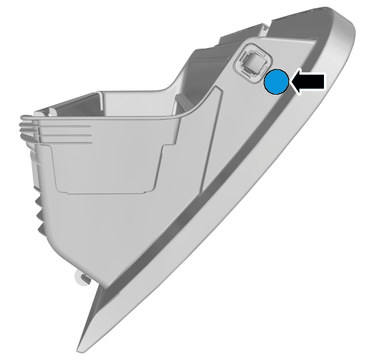

Loosen the fastener.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

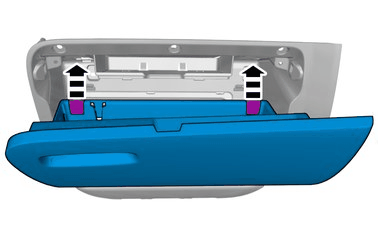

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

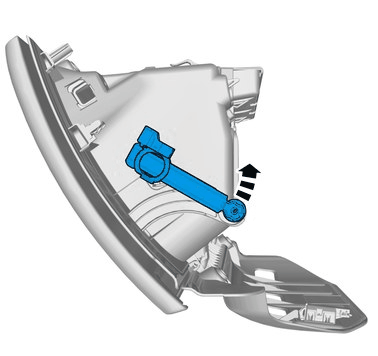

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
