Driver's Knee Airbag [2018-2022]: Removal
Removal steps in this procedure may contain installation details.
Follow instructions about safety information pyrotechnical system. Refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS
See information regarding the handling of non-deployed pyrotechnical parts. Refer to: HANDLING NON-DEPLOYED PYROTECHNICAL PART

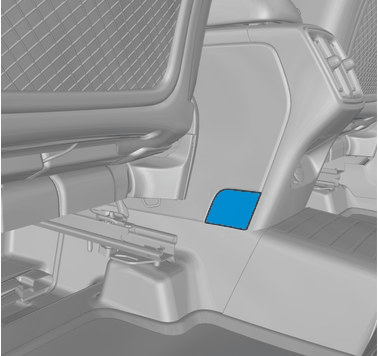

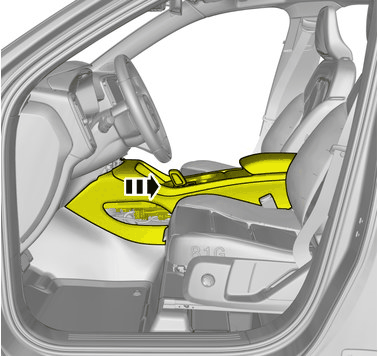

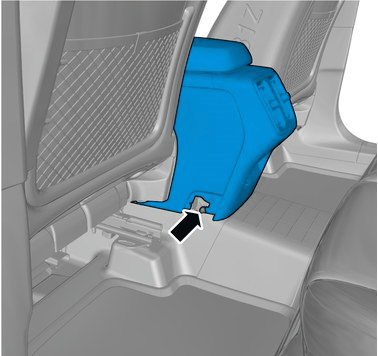

On both sides.

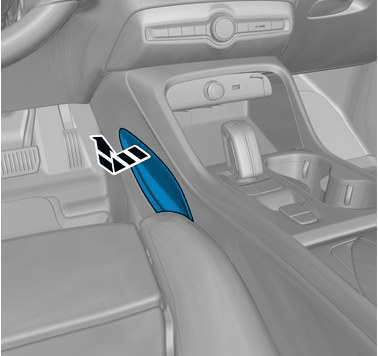

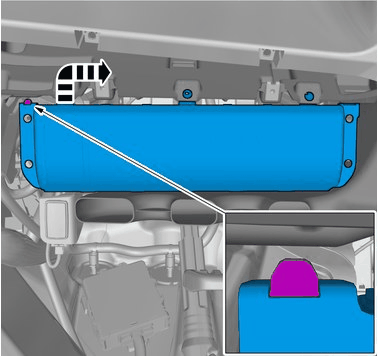

The graphic shows the back of the component before removal.
Remove the marked part.
On both sides.
Use: Interior trim remover

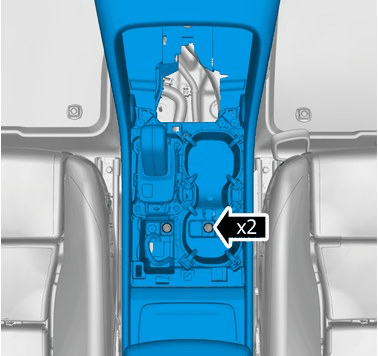

Remove the screw.
On both sides.
Torque: M6, 10Nm
On both sides.
Perform battery disconnecting and connecting. Refer to: BATTERY DISCONNECTING AND CONNECTING
The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

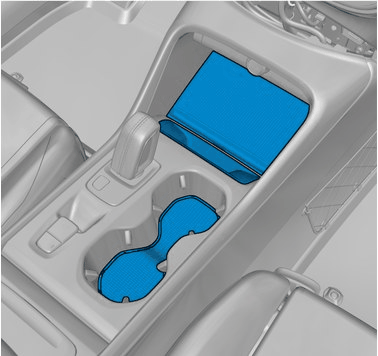

Remove Centre Console Switch Module CCSM. Refer to: CENTER CONSOLE SWITCH MODULE CCSM

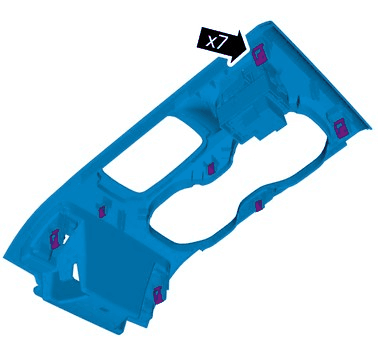

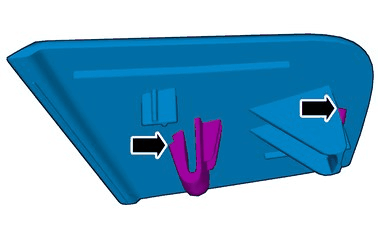

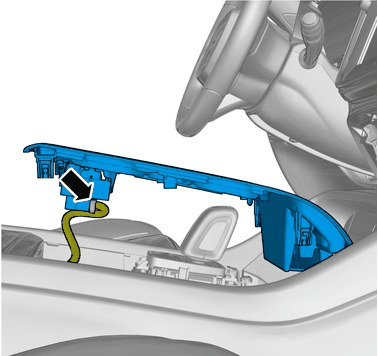

The graphic shows the back of the component before removal.
Remove the marked part.
Use: Interior trim remover

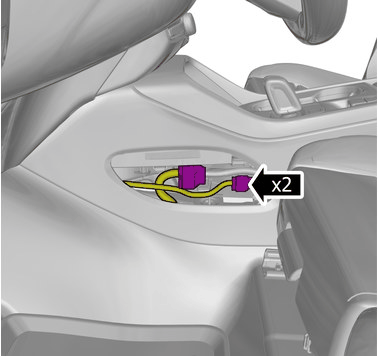

Disconnect the connectors.

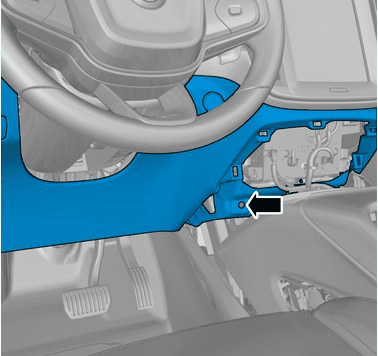

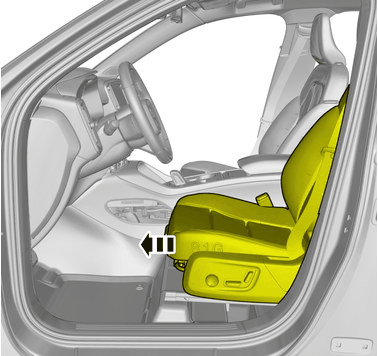

Remove the marked detail/details.

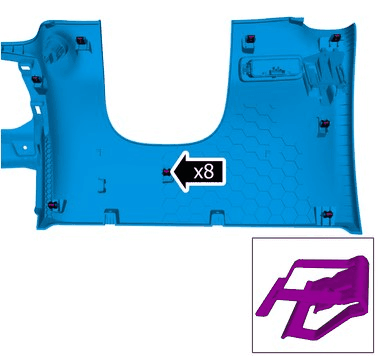

The graphic shows the back of the component before removal.
Loosen the marked detail.
Use: Interior trim remover
Disconnect the connector.

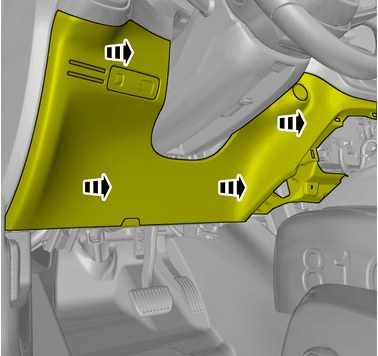

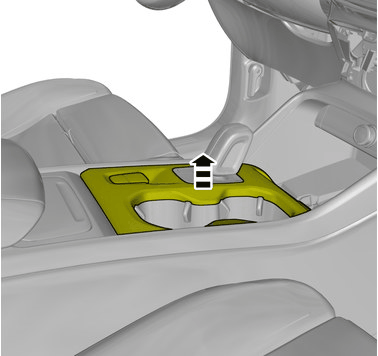

Remove the marked part.

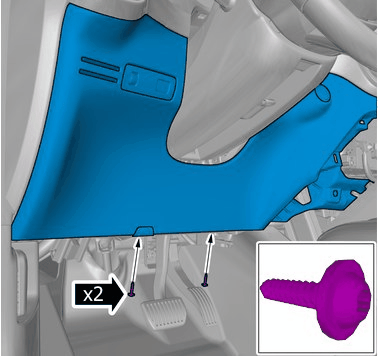

Remove the screws.
Loosen the component indicated. Do not remove it.

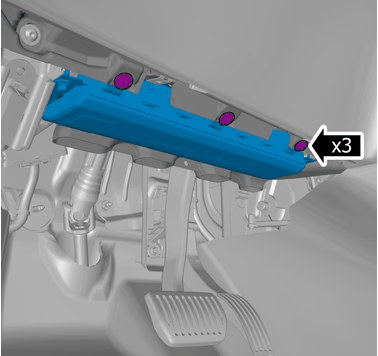

Remove the screws.
Remove the screw.

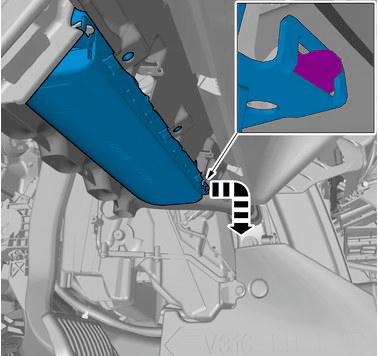

The graphic shows the back of the component before removal.
Loosen the marked detail.

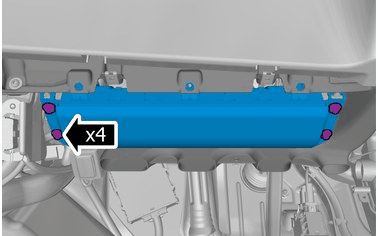

Remove the screws.
Remove the screws.
Torque: Knee airbag to bracket, 6Nm

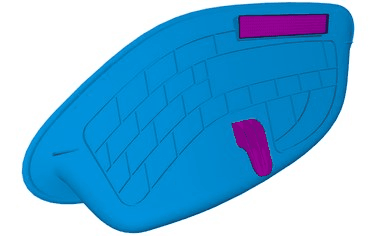

Remove the marked part.
Remove the marked part.

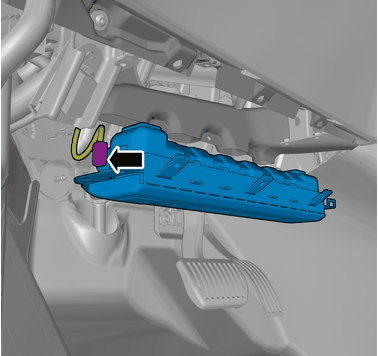

Disconnect connector, ignition cable. Refer to: IGNITER WIRE CONNECTOR
Disconnect the connector.
