Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the correct location of the seat belt, which is shown in the graphic.

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Remove the seat cushion, rear seat. Refer to: SEAT CUSHION, REAR SEAT

Courtesy of VOLVO CARS CORPORATION

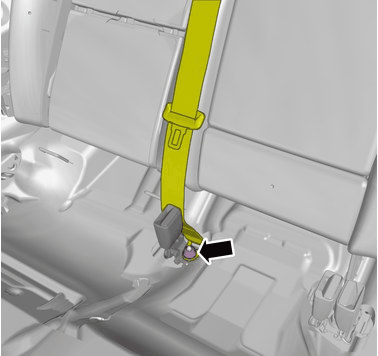

Torque: Buckle safety belt to body, 48Nm

Remove the nut.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

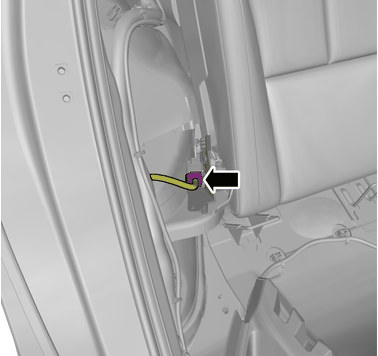

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

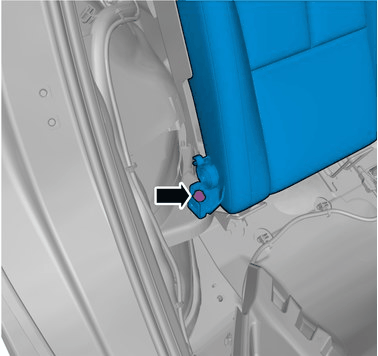

Loosen the marked detail.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: Rear seat backrest to body, 48Nm

Courtesy of VOLVO CARS CORPORATION

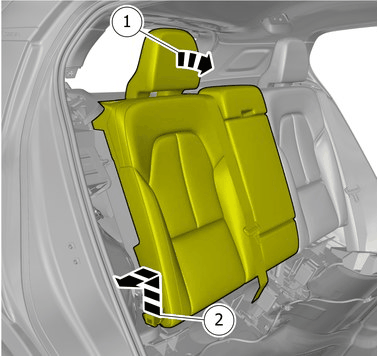

NOTE:

For this step, the help of another mechanic is needed.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

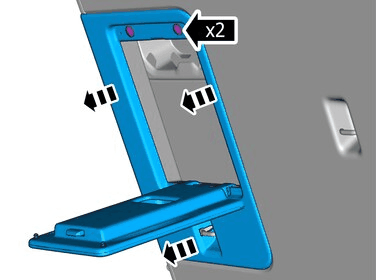

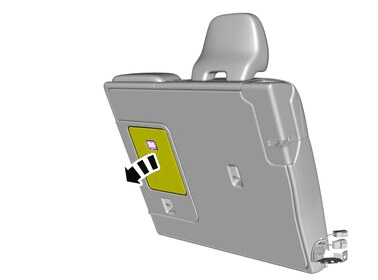

Open the lid.

Courtesy of VOLVO CARS CORPORATION

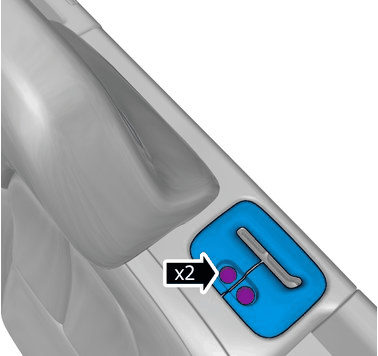

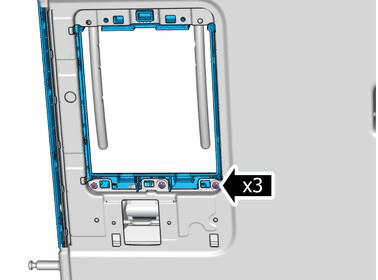

Remove the screws.

Remove the marked part.

Use: Interior trim remover

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

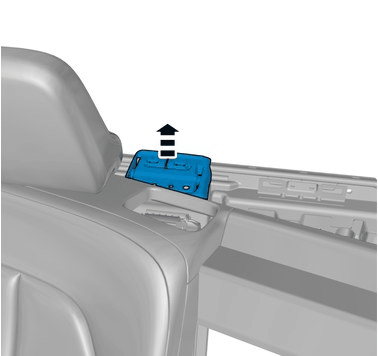

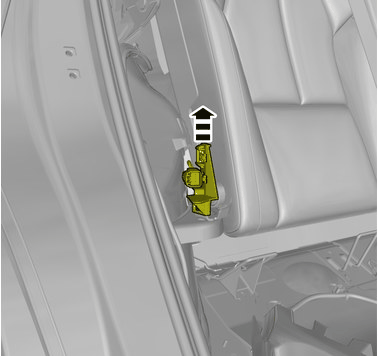

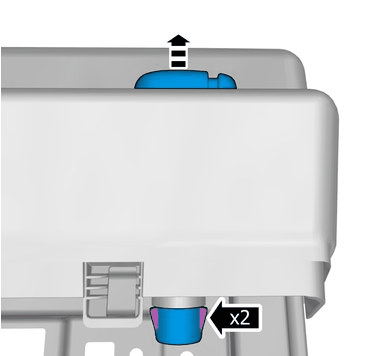

Lift the marked component up

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Use: Interior trim remover

Courtesy of VOLVO CARS CORPORATION

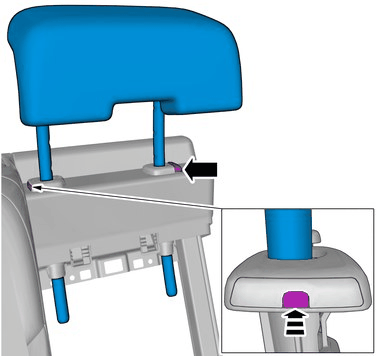

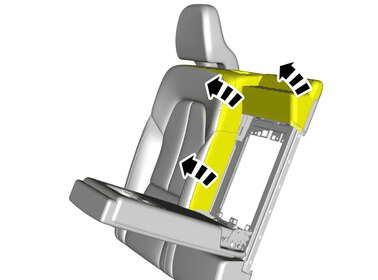

Release the locks.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

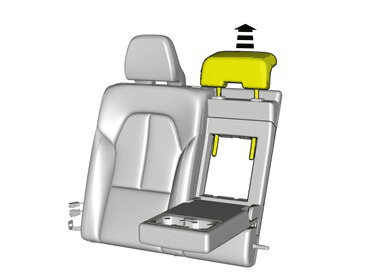

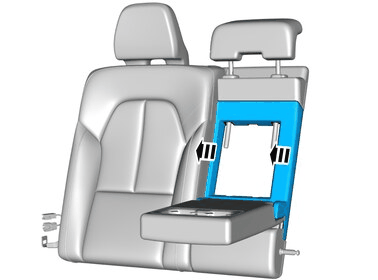

Release the locks.

Remove the marked part.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

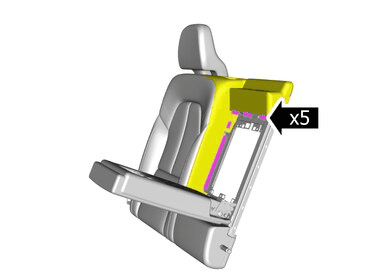

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

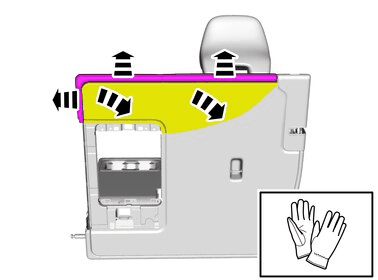

WARNING:

Parts of the components are sharp.

WARNING:

Wear protective gloves.

Release the catches.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Parts of the components are sharp.

WARNING:

Wear protective gloves.

Release the catches.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Parts of the components are sharp.

WARNING:

Wear protective gloves.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

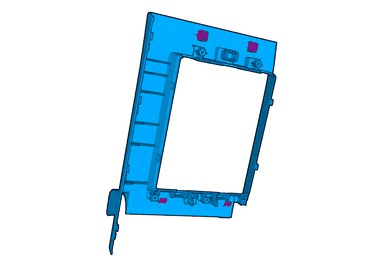

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

For this step, the help of another mechanic is needed.

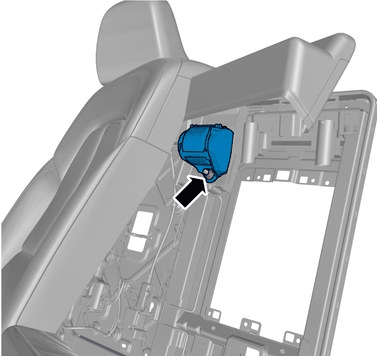

Torque: Seat belt retractor, to Seat, 25Nm

Remove the nut.

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.

CHECK

Courtesy of VOLVO CARS CORPORATION

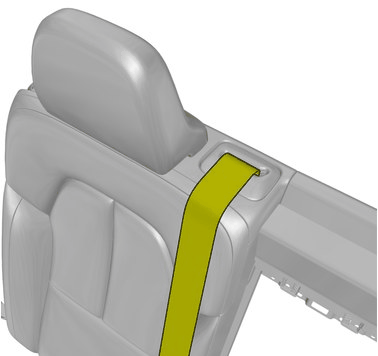

WARNING:

Make sure to place the seat belt as the graphic shows.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Check that the seat belt buckle locks and opens correctly.

NOTE:

Check the function by jerking the seat belt repeatedly.
