STOPLAMP Switch [2018-2022]: Removal

Remove panel steering column. Refer to: PANEL STEERING COLUMN

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

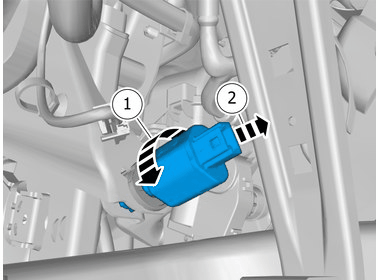

The graphic shows the back of the component.

Depress the locking device.

Remove the marked part.
