STOPLAMP Switch [2018-2022]: Installation

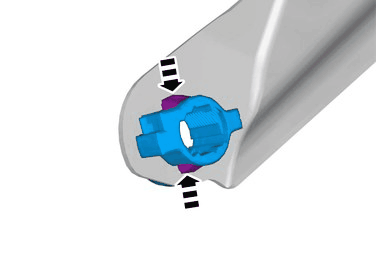

GLL1021569Courtesy of VOLVO CARS CORPORATION

Install the marked component.

The graphic shows the back of the component.

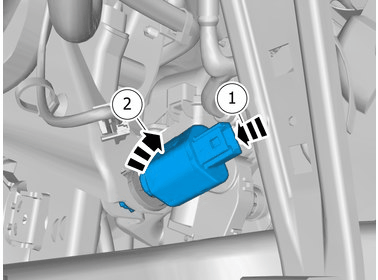

GLL1044999Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the automatic adjuster reaches its end position.

Install the marked component.

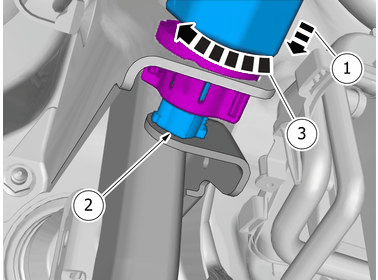

GLL1047474Courtesy of VOLVO CARS CORPORATION
  1. Install the marked component.
    2. NOTE:

    Ensure that the component is in contact with the surface, with no space.

  3. Turn in direction of arrow until stop.

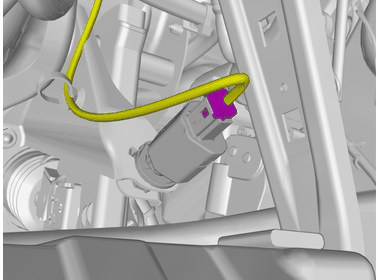

GLL1006446Courtesy of VOLVO CARS CORPORATION

Connect the connector.

Install panel steering column. Refer to: PANEL STEERING COLUMN
