Emergency Opening Of Hood [2019-2022]: Removal

Courtesy of VOLVO CARS CORPORATION

Remove the wheel. Refer to: [WHEELS]

Remove front wheel arch liner. Refer to: [FRONT WHEEL ARCH LINER]

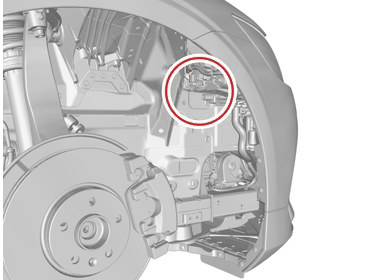

APPLIES TO THE LEFT-HAND SIDE:

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

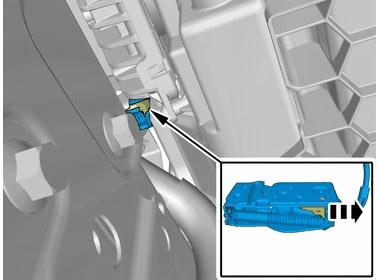

Release the lock.

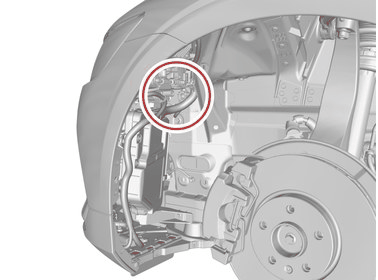

APPLIES TO THE RIGHT-HAND SIDE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

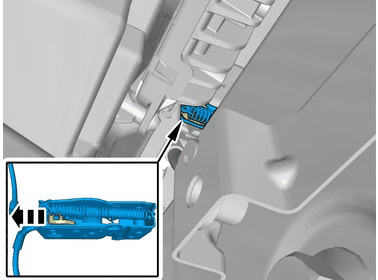

Release the lock.
