Master Cylinder, Brake [2019, B4204T23 | 2018, B4204T23, TG-81SC; TG-81SC AWD | 2019-2022, B4204T27 | 2018, B4204T27, TG-81SC AWD | 2019, B4204T28]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Follow instructions about safety information brake system. Refer to: [SAFETY INFORMATION BRAKE SYSTEM]
Remove the wiper mechanism, windscreen. Refer to: [WIPER MECHANISM, WINDSHIELD]

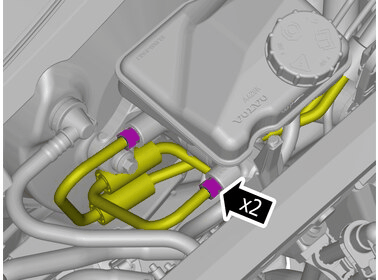

WARNING:
Be prepared to collect escaping fluid.
CAUTION:
Make sure that all openings are sealed.
Torque: Ø8 mm diameter brake line, 18Nm

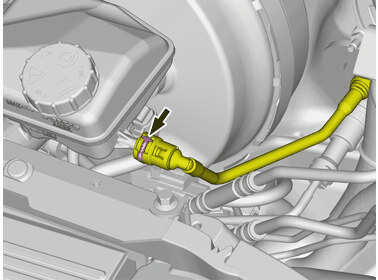

CARS WITH MANUAL TRANSMISSIONS
WARNING:
Be prepared to collect escaping fluid.
CAUTION:
Make sure that all openings are sealed.
Release the lock.
Undo the hose from the connection.
ALL VEHICLES
Disconnect the connector.
Loosen the clip.
WARNING:
Make sure that new nuts are installed.
Torque: Master cylinder, to Brake booster, 27Nm
Remove the nuts.
Remove the marked part.
