Master Cylinder, Brake [2017-2018]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Follow instructions about safety information brake system. Refer to: [SAFETY INFORMATION BRAKE SYSTEM]
Remove the wiper mechanism, windscreen. Refer to: [WIPER MECHANISM, WINDSHIELD]
WARNING:
Be prepared to collect escaping fluid.
CAUTION:
Make sure that all openings are sealed.
Torque: Ø8 mm diameter brake line, 18Nm

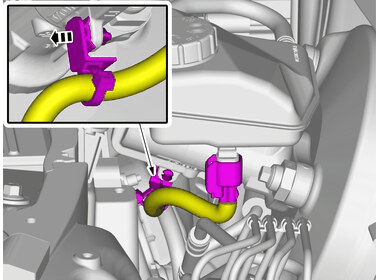

Disconnect the connector.
Loosen the clip.
WARNING:
Make sure that new nuts are installed.

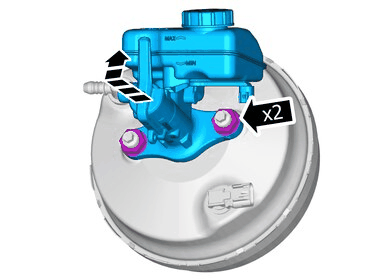

Torque: Master cylinder, to Brake booster, 27Nm
Loosen the nuts.
Remove the marked part.
