Seat Belt TENSIONER [2021-2022]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
APPLIES TO THE PASSENGER SIDE

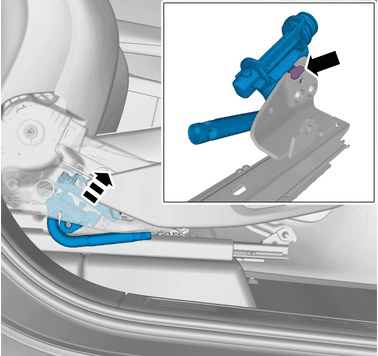

Disconnect quick-release belt. Refer to: [SAFETY BELT ANCHOR QUICK RELEASE]

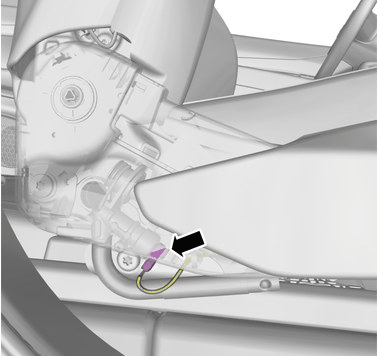

Disconnect connector ignition cable. Refer to: [IGNITER WIRE CONNECTOR]
Disconnect the connector.
Torque: Seat belt tensioner lap to seat, 40Nm

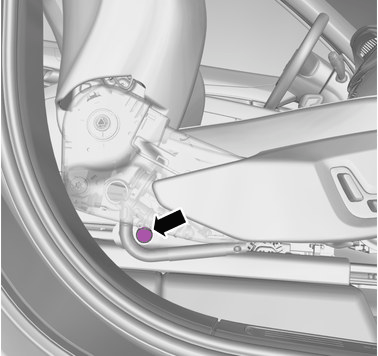

Remove the screw.

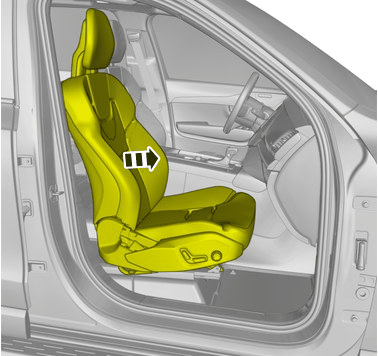

Remove the marked part.
