Safety Belt Buckle, Rear [2017-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the correct location of the seat belt, which is shown in the graphic.

Remove the seat cushion, rear seat. Refer to: [SEAT CUSHION, REAR SEAT]

APPLIES TO THE RIGHT-HAND SIDE

Courtesy of VOLVO CARS CORPORATION

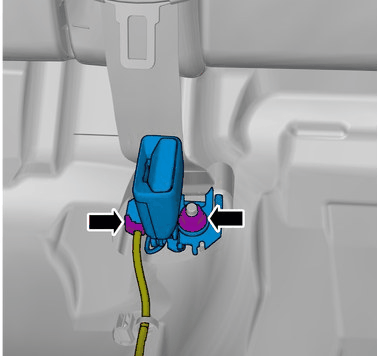

Remove the nut.

Disconnect the connector.

Torque: Buckle safety belt to body, 48Nm

Courtesy of VOLVO CARS CORPORATION

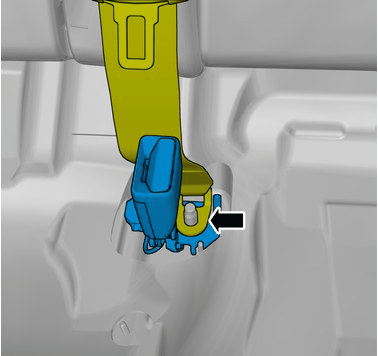

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

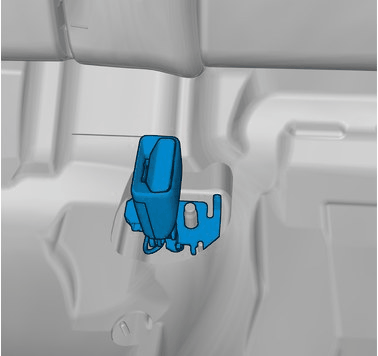

Remove the marked part.

APPLIES TO THE LEFT-HAND SIDE:

Courtesy of VOLVO CARS CORPORATION

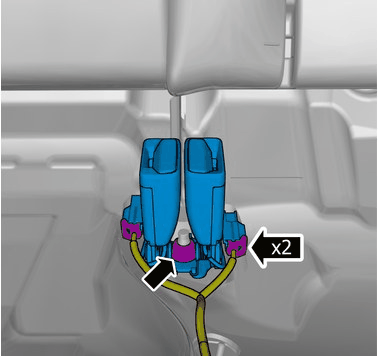

Remove the nut.

Disconnect the connectors.

Remove the marked part.

Torque: Buckle safety belt to body, 48Nm
