SUBFRAME Releaser [2017-2018]: Removal
Removal steps in this procedure may contain installation details.
Follow instructions about safety information pyrotechnical system. Refer to: [SAFETY INFORMATION PYROTECHNICAL SYSTEMS]
See information regarding the handling of non-deployed pyrotechnical parts. Refer to: [HANDLING NON-DEPLOYED PYROTECHNICAL PART]
Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]
The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.
Remove front floor carpet. Refer to: [FRONT FLOOR CARPET]
APPLIES TO THE DRIVER'S SIDE
Make sure that new bolts are installed.

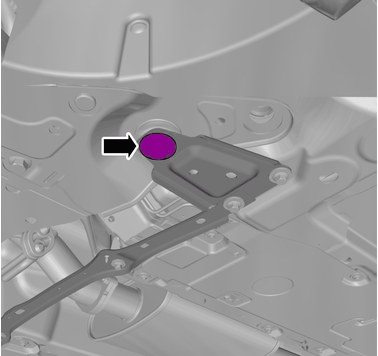

Remove the screw.
Torque: Subframe to chassis (rear screws)
- Stage 1: 140Nm
- Stage 2: 150°
Remove the cable harness clips.
Remove the nuts.

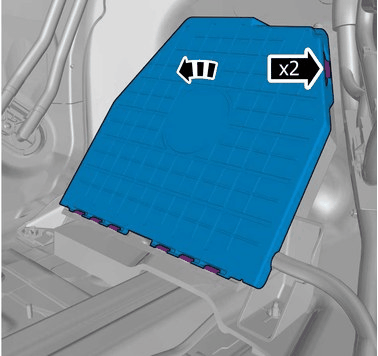

Release the catches.
Remove the marked part.

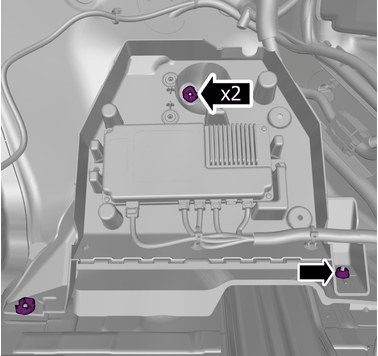

Remove the nuts.
Remove the marked part.
Torque: M6, 10Nm
Remove the cable harness clips.

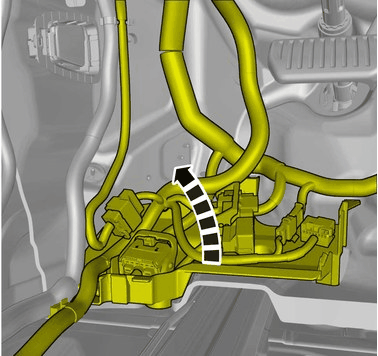

Fold marked part aside.

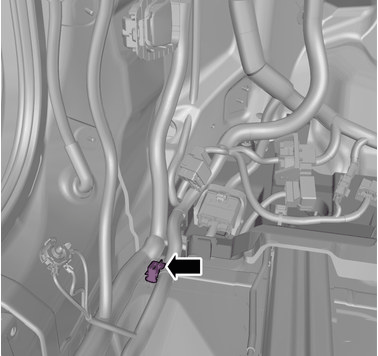

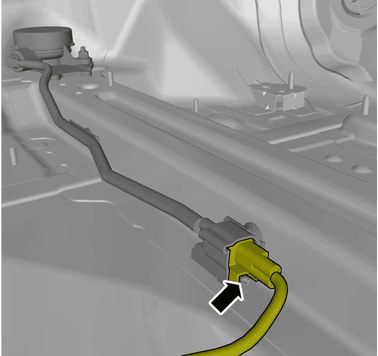

Disconnect the connector.

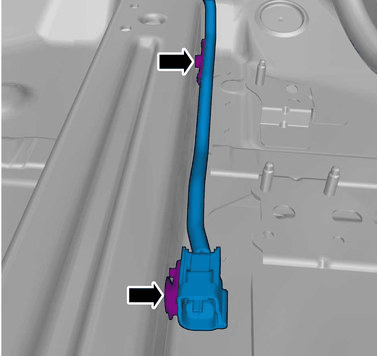

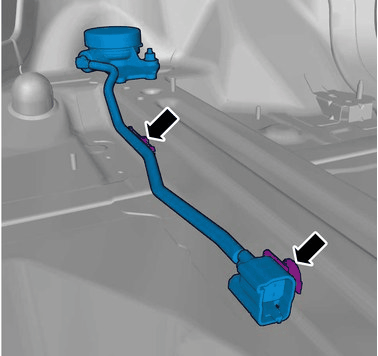

Remove the cable harness clips.

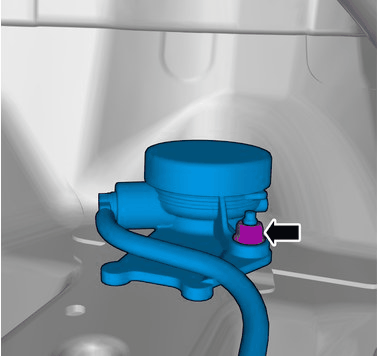

Remove the nut.
Torque: M6, 10Nm

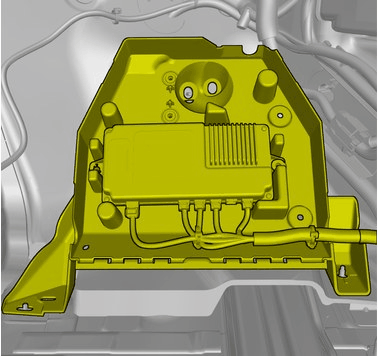

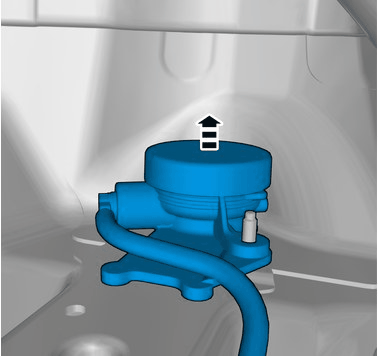

Remove the marked part.
APPLIES TO THE PASSENGER SIDE
Make sure that new bolts are installed.

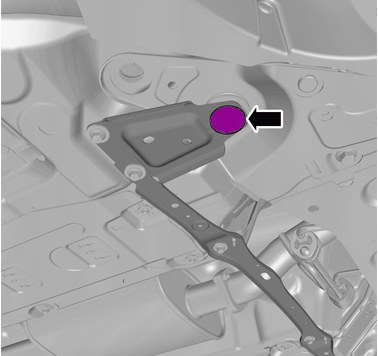

Remove the screw.
Torque: Subframe to chassis (rear screws)
- Stage 1: 140Nm
- Stage 2: 150°

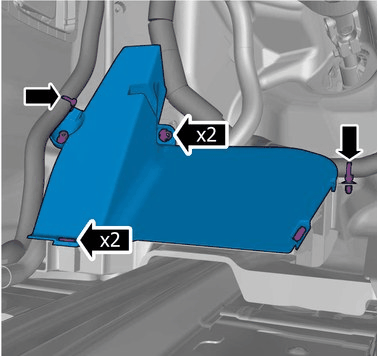

Release the catches.
Remove the marked part.

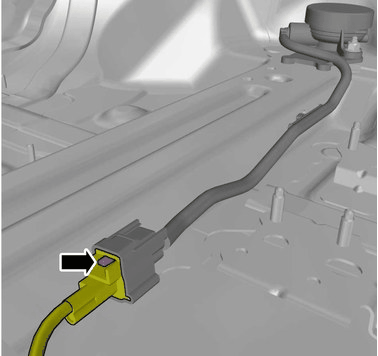

Disconnect the connector.

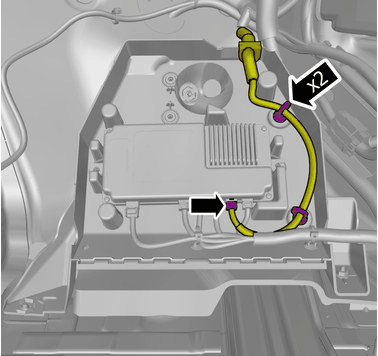

Remove the cable harness clips.
Fold marked part aside.

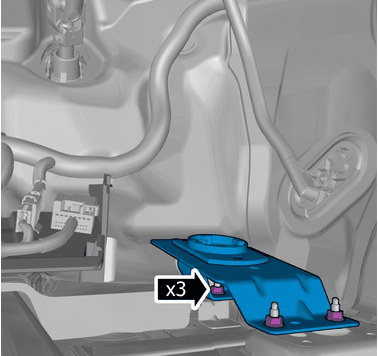

Remove the nuts.
Torque: M6, 10Nm
Fold marked part aside.
Disconnect the connector.
Remove the cable harness clips.
Remove the nut.
Torque: M6, 10Nm
Remove the marked part.
